Drehgeber und Winkelmesssysteme

ROD 486-3600 ID.-NR. 376886-59 HEIDENHAIN INCREMENTAL ROTARY ENCODER WITH INTEGRAL BEARING FOR SEPARATE SHAFT COUPLING, LINE COUNT 3600, OUTPUT SIGNAL ~1VPP, FLANGE VERSION SYNCHRO FLANGE Ø 58 MM, CENTERING COLLAR 50 MM, BOLT CIRCLE Ø 42 MM, 3 X M4 SHAFT: SOLID SHAFT, DIAMETER 6 MM, LENGTH 9.5 MM, ELECTRICAL CONNECTION FREE CABLE END, PIN CONFIGURATION D294999, CONNECTING DIRECTION CABLE OUTLET FOR AXIAL AND RADIAL USE

ROD 450-01800 ID.-NR. 211756-4F HEIDENHAIN INCREMENTAL ROTARY ENCODER

RON 285-18000 ID.-NR. 286591-05 HEIDENHAIN INCREMENTAL ANGLE ENCODER WITH HOLLOW SHAFT AND INTEGRADED COUPLING, LINE COUNT 18000

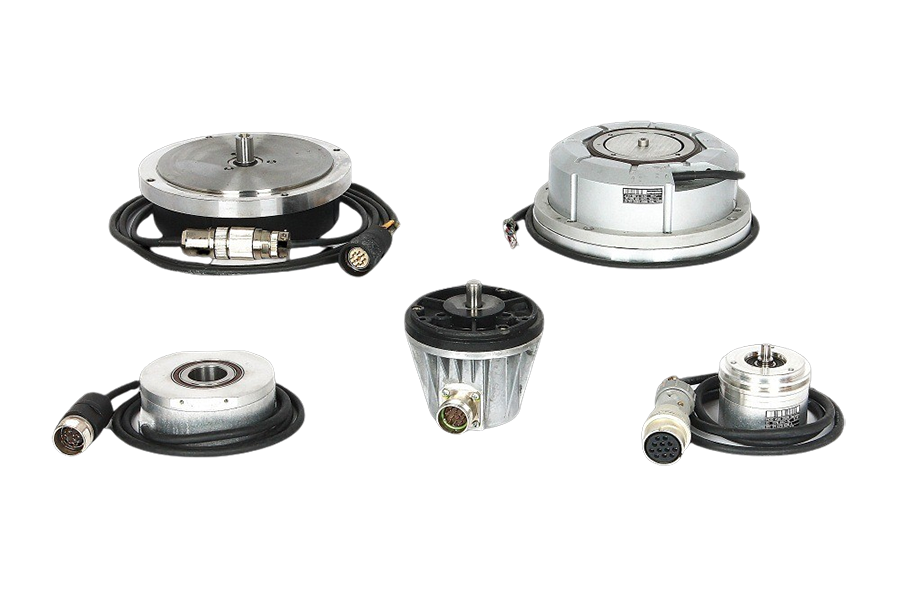

ROD 486-2048 ID.-NR. 295466-0P HEIDENHAIN INCREMENTAL ROTARY ENCODER LINE COUNT 2048

ERN 1385-2048 ID.-NR. 312215-11 HEIDENHAIN INCREMENTAL ROTARY ENCODER LINE COUNT 2048

ERN 180-5000 ID.-NR. 589614-92 HEIDENHAIN INCREMENTAL ROTARY ENCODER WITH INTEGRAL BEARING FOR MOUNTING BY STATOR COUPLING, LINE COUNT 5000, OUTPUT SIGNAL ~1VPP, COUPLING VERSION STATOR COUPLING FOR PLANE SURFACE (HOLE CIRCLE Ø 152 MM), AXIAL MOTION ±10 MM, SHAFT HOLLOW THROUGH SHAFT WITH ECCENTRIC CLAMPING, DIAMETER 50 MM, ELECTRICAL CONNECTION CONNECTOR M23, MALE, 12-PIN, CONNECTING DIRECTION CABLE OUTLET FOR AXIAL AND RADIAL USE, CABLE LENGTH 0.50

ROD 480-5000 ID.-NR. 376880-43 HEIDENHAIN INCREMENTAL ROTARY ENCODER WITH INTEGRAL BEARING FOR SEPARATE SHAFT COUPLING, LINE COUNT 5000, OUTPUT SIGNAL ~1VPP, SHAFT SOLID SHAFT, DIAMETER 10 MM, LENGTH 20 MM, ELECTRICAL CONNECTION FLANGE SOCKET M23, MALE, 12-PIN, CONNECTING DIRECTION RADIAL

ROD 480-1000 ID.-NR 376880-32 HEIDENHAIN INCREMENTAL ROTARY ENCODER WITH INTEGRAL BEARING FOR SEPARATE SHAFT COUPLING LINE COUNT 1000, OUTPUT SIGNAL ~1VPP, SHAFT SOLID SHAFT, DIAMETER 10 MM, LENGTH 20 MM, ELECTRICAL CONNECTION FLANGE SOCKET M23, MALE, 12-PIN, CONNECTING DIRECTION RADIAL

ROD 280-18000 ID.-NR. 512132-31 HEIDENHAIN INCREMENTAL ANGLE ENCODER WITH INTEGRAL BEARING FOR SEPARATE SHAFT COUPLING LINE COUNT 18000, SYSTEM ACCURACY ±5.0'', OUTPUT SIGNAL ~1VPP, REFERENCE MARK ANALOG, SHAFT SOLID SHAFT WITH RECESS FOR SEALING RING, DIAMETER 10 MM, LENGTH 20 MM, CONNECTING DIRECTION CABLE OUTLET FOR AXIAL AND RADIAL USE, CABLE LENGTH 5.00 M

ROD 1020-2500 ID.-NR. 534900-80 HEIDENHAIN INCREMENTAL ROTARY ENCODER WITH INTEGRAL BEARING FOR SEPARATE SHAFT COUPLING LINE COUNT 2500, OUTPUT SIGNAL TTL, SHAFT SOLID SHAFT, DIAMETER 4 MM, LENGTH 12.5 MM, ELECTRICAL CONNECTION COUPLING M23, MALE, 12-PIN, CONNECTING DIRECTION CABLE OUTLET FOR AXIAL AND RADIAL USE, CABLE LENGTH 1.00 M

RON 806.0000-36000 I/U ID.-NR. 247412-02 HEIDENHAIN INKREMENTALES WINKELMESSYSTEM MIT INTEGRIERTER KUPPLUNG MIT 4-ABTASTSTELLEN ANALOG VERSCHALTET AUSGANGSSIGNALE SINUSFÖRMIG, 5 V, 11 UASS HOHLWELLE, DURCHMESSER 60 MM SCHUTZART IP64 REFERENZSIGNAL ANALOG KABEL

ERN 1385-2048 ID.-NR. 749144-08 HEIDENHAIN INCREMENTAL ROTARY ENCODER WITH INTEGRAL BEARING FOR MOUNTING BY STATOR COUPLING LINE COUNT 2048, OUTPUT SIGNAL ~1VPP, SHAFT BLIND HOLLOW SHAFT FOR AXIAL FASTENING, DIAMETER 12.7 MM, DEPTH 19 MM, ELECTRICAL CONNECTION PLUG CONNECTOR, STRAIGHT, DOUBLE-ROW, 14-PIN, WITH LOCKING MECHANISM AND WALLS, CONNECTING DIRECTION CABLE OUTLET FOR AXIAL AND RADIAL USE

ROD 436-200 ID.-NR. 261436-1P HEIDENHAIN INKREMENTAL ROTARY ENCODER, LINE COUNT 200

ROD 2271-1024/18000 ID.-NR. 263615-02 HEIDENHAIN INCREMENTAL ROTARY ENCODER WITH DUAL TRACK SCANNING, TRACK 1 LINE COUNT 1024, TRACK 2 LINE COUNT 18000

ROD 420-5000 ID.-NR. 295281-1A HEIDENHAIN INCREMENTAL ROTARY ENCODER, POWER SUPPLY +5V, OUTPUT SIGNALS SQUAREWAVE; TTL, MOUNTING MODE CLAMPING FLANGE, SHAFT DIAMETER 10MM, ELECTRICAL CONNECTION CABLE 1 M WITH CONNEC. CABLE OUTPUT AXIAL

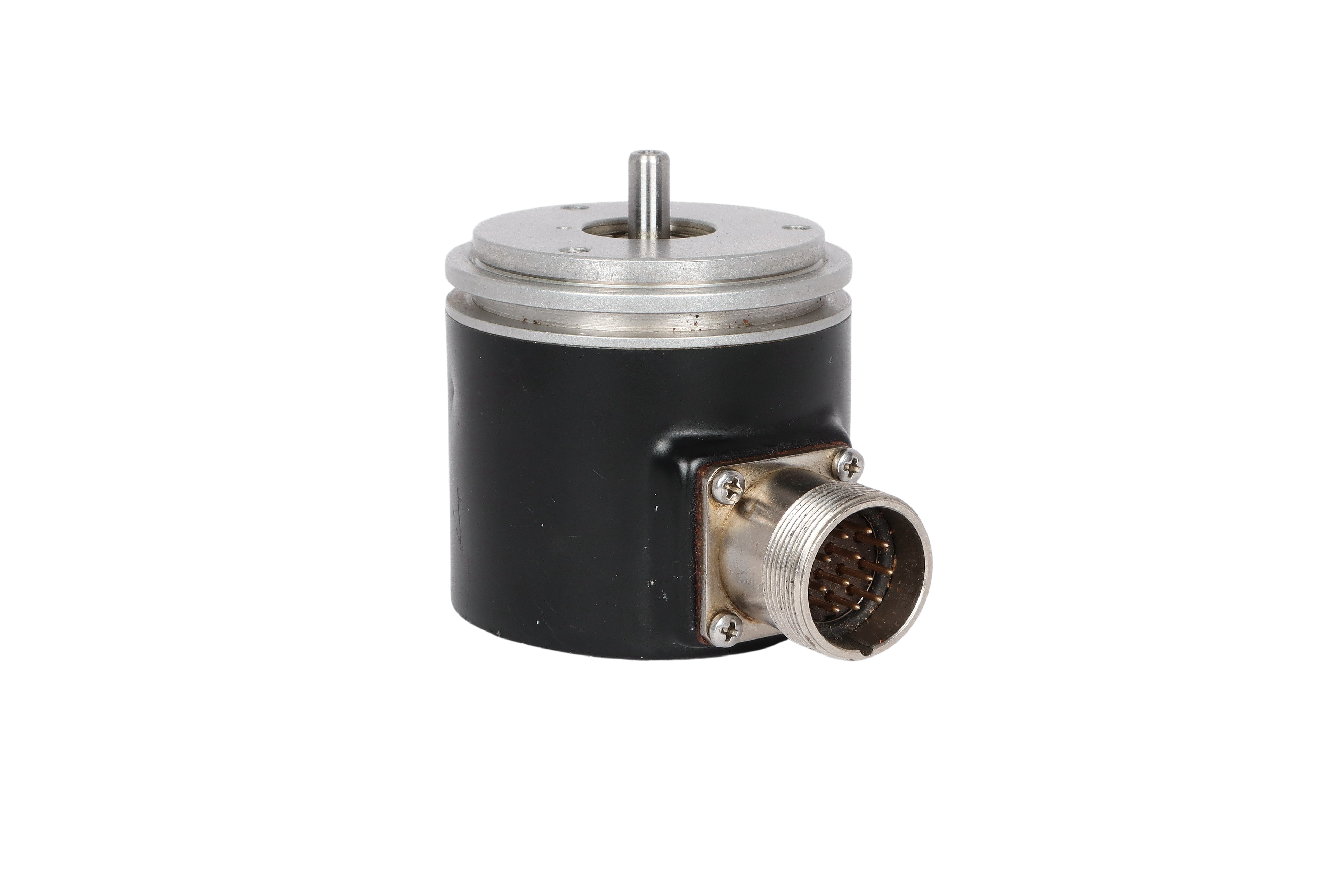

ROD 426B-01250 ID.-NR. 253580-10 HEIDENHAIN INCREMENTAL ROTARY ENCODER REFERENCE SIGNAL WIDTH 90 DEGREES ELECTRICAL SQUAREWAVE-OUTPUT SIGNALS TTL WITH LATERAL FLANGE SOCKET 1024 LINES

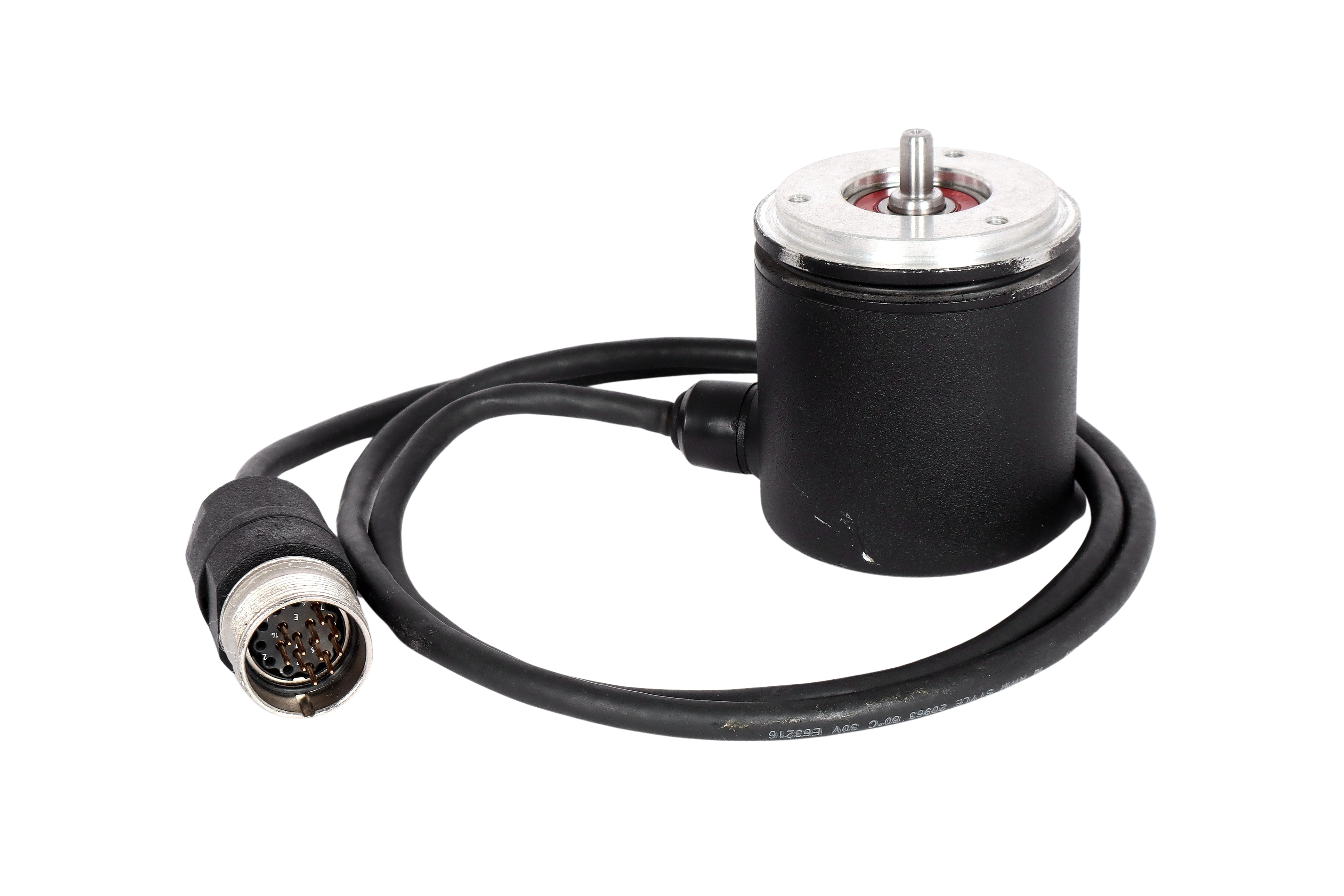

ROQ 424-512 ID.-NR. 312219-67 HEIDENHAIN MULTITURN ABSOLUTE ENCODER 24-BIT ENCODER WITH 25-BIT WORLD LENGTH, MEASURING RANGE 4096 CODED REVOLUTIONS, ABSOLUTE POSITION VALUES 4096/REVOLUTION, SHAFT DIAMETER 6MM, INCREMENTAL SIGNALS SINUSOIDAL VOLTAGE SIGNALS 1VPP, LINE COUNT  512, ELECTRICAL CONNECTION 1 M CABLE WITH RADIAL OUTLET

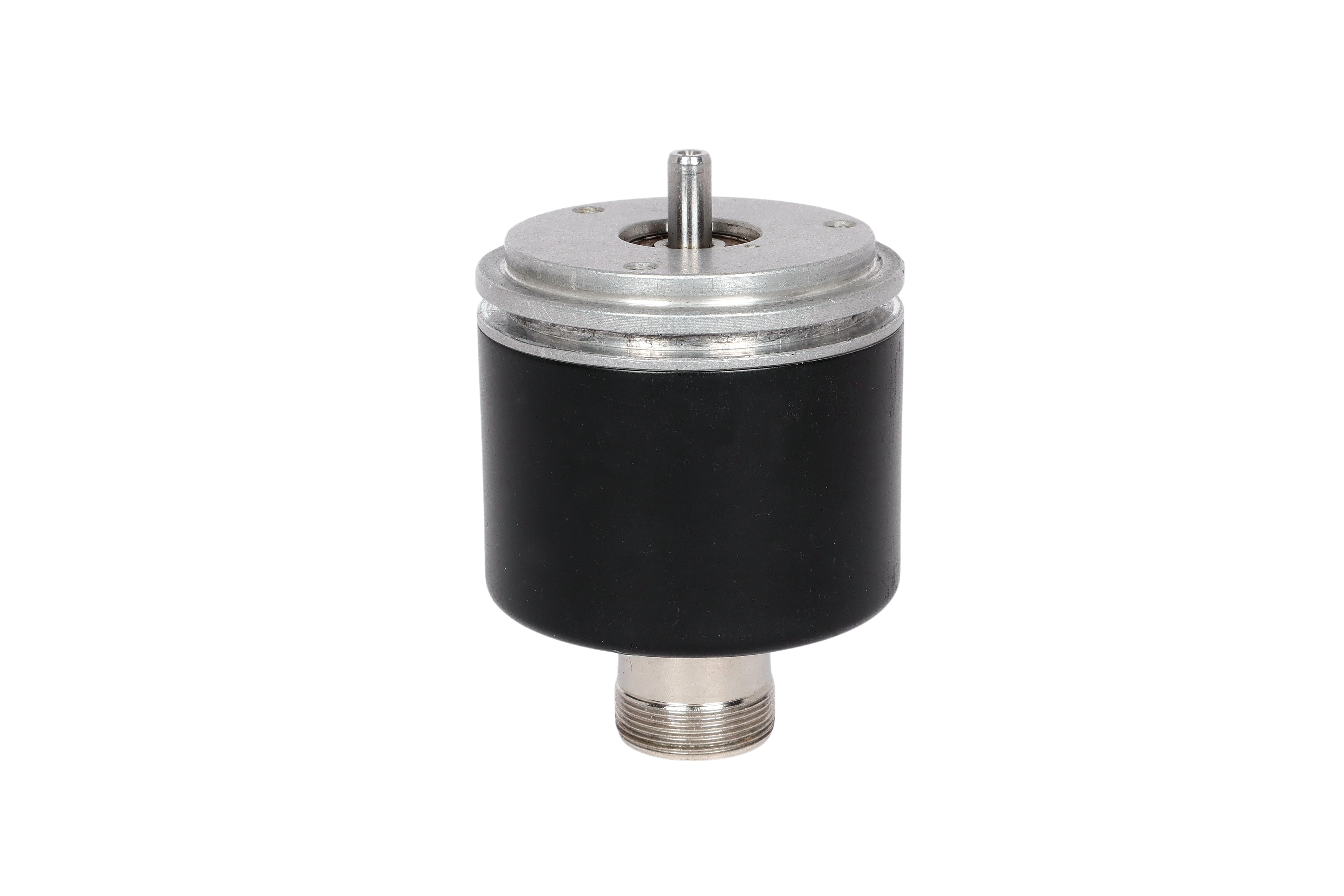

ROD 426-2500 ID.-NR. 250048-04 HEIDENHAIN INCREMENTAL ROTARY ENCODER 2500 LINES, OUTPUT SIGNALS WITH TTL LEVELS, SYNCHER-FLANGE, SHAFT DIAMETER 6MM, REFERENCE SIGNAL GATED, FLANGE SOCKET AXIAL

ROD 420-500 ID.-NR. 295284-03 HEIDENHAIN INCREMENTAL ROTARY ENCODER, LINE COUNT 500

RON 287-18000 ID.-NR. 298078-01 HEIDENHAIN ANGLE ENCODER WITH INTEGRATED COUPLING, LINE COUNT 18000

ROC 413-512 ID.-NR. 311831-01 HEIDENHAIN SINGLE-TURN ABSOLUTE ENCODER, RESOLUTION 13 BIT=8192 POS./REVOLUTION, OUTPUT CODE GRAY CODE, MOUNTING SYNCHRO FLANGE, SHAFT DIAMETER 6 MM, OUTPUT SIGNALS SINUSOIDAL VOLTAGE (1 VPP), SIGNAL PERIODS 512 ROTATION: INCREASING VALUES WITH CW ROTATION, ELECTR. CONNECTION FLANGE SOCKET RADIAL

ROD 250C-18000 ID.-NR. 331880-07 HEIDENHAIN INCREMENTAL ANGLE ENCODER, OUTPUT SIGNALS SINUSOIDAL (11UAPP), REFERENCE MARKS DISTANCE-CODED, ACCURACY GRADE +/-5", ELECTRICAL CONNECTION CABLE 3M WITHOUT CONNECT. CAN BE USED AXIAL OR RADI., LINE COUNT 18000

ROD 270-18000 ID.-NR. 331882-47 HEIDENHAIN INCREMENTAL ANGLE ENCODER WITH INTEGRATED COUPLING AND 10-FOLD INTERPOLATION, OUTPUT SIGNALS SQUARE-WAVE SIGNALS; TTL, REFERENCE MARK ONE, ACCURACY GRADE +/-5", ELECTRICAL CONNECTION CABLE 1M WITH COUPLING CAN BE USED AXIAL OR RADI., LINE COUNT 18000

RCN 8590F-32768 ID.-NR. 671083-01 HEIDENHAIN ABSOLUTE ANGLE ENCODER (SINGLETURN) WITH INTEGRAL BEARING AND INTEGRATED STATOR COUPLING, SYSTEM ACCURACY ±1.0'', DATA INTERFACE FANUC05, POSITIONS PER REVOLUTION 536870912, OUTPUT CODE BINARY, SHAFT HOLLOW SHAFT, DIAMETER 60 MM, ELECTRICAL CONNECTION FLANGE SOCKET ULTRA-LOCK, MALE, 12-PIN, CONNECTING DIRECTION TANGENTIAL

ROD 420-500 ID.-NR. 376842-03 HEIDENHAIN INCREMENTAL ROTARY ENCODER WITH INTEGRAL BEARING FOR SEPARATE SHAFT COUPLING, LINE COUNT 500, OUTPUT SIGNAL TTL, SHAFT SOLID SHAFT WITH SLOT ON FACE, DIAMETER 10 MM, ELECTRICAL CONNECTION FREE CABLE END, CONNECTING DIRECTION CABLE OUTLET FOR AXIAL AND RADIAL USE, CABLE LENGTH 1.00 M

ERN 480-1024 ID.-NR. 385480-2D HEIDENHAIN INCREMENTAL ROTARY ENCODER WITH INTEGRAL BEARING FOR MOUNTING BY STATOR COUPLING, LINE COUNT 1024, OUTPUT SIGNAL ~1VPP, SHAFT BLIND HOLLOW SHAFT WITH STEEL CLAMPING RING, DIAMETER 12 MM, DEPTH 24 MM, ELECTRICAL CONNECTION FREE CABLE END, CONNECTING DIRECTION CABLE OUTLET FOR AXIAL AND RADIAL USE, CABLE LENGTH 1.00 M

ERN 480-5000 ID.-NR. 385480-46 HEIDENHAIN INCREMENTAL ROTARY ENCODER WITH INTEGRAL BEARING FOR MOUNTING BY STATOR COUPLING, LINE COUNT 5000, OUTPUT SIGNAL ~1VPP, SHAFT HOLLOW THROUGH SHAFT WITH CLAMPING RING USABLE ON BOTH SIDES, DIAMETER 12 MM, ELECTRICAL CONNECTION FLANGE SOCKET M23, MALE, 12-PIN, CONNECTING DIRECTION RADIAL

ROD 456B-00500 ID.-NR. 212250-2M HEIDENHAIN INCREMENTAL ROTARY ENCODER LINE COUNT 500

ROD 426-1000 ID.-NR. 222651-23 HEIDENHAIN INKREMENTALER DREHGEBER MIT ERWEITERTEM TEMPERATURBEREICH -30 BIS 100 GRAD AUSGANGSSIGNALE TTL ABTASTFREQUENZ 0 ... 300 KHZ KABELLAENGE 1,00M, OHNE STECKER KABELAUSGANG RADIAL 1000 STR

ROC 739F-16384 ID.-NR. 1110422-01 HEIDENHAIN ABSOLUTE ANGLE ENCODER (SINGLETURN) WITH INTEGRAL BEARING FOR SEPARATE SHAFT COUPLING SYSTEM ACCURACY ± 2.0''; SHAFT SOLID SHAFT, DIAMETER 14,  MM, LENGTH 20 MM, WITH INTERNAL THREAD M6, DEPTH 16 MM, FLANGE VERSION FLANGE WITH 170 MM OUTSIDE DIAMETER AND 140 MM CENTERING COLLAR, ALUMINUM, CABLE LENGTH 1,0 M, ELECTRICAL CONNECTION COUPLING M12, MALE, 8-PIN, CONNECTING DIRECTION CABLE OUTLET FOR AXIAL AND RADIAL USE

ECN 1325-2048 ID.-NR. 1178026-03 HEIDENHAIN ROTARY ENCODER WITH INTEGRAL BEARING, OUTPUT CODE BINARY, LINE COUNT 2048, SHAFT TAPERED SHAFT 1 TO 10, FUNCTIONAL DIAMETER 9.25 MM, BACK-OFF THREAD M10 AND M6, ELECTRICAL CONNECTION PLUG CONNECTOR, STRAIGHT, DOUBLE-ROW, 12- AND 4-PIN, WITH LOCKING MECHANISM AND WALLS (LATERAL CODED), CONNECTING DIRECTION CABLE OUTLET FOR AXIAL AND RADIAL USE

RCN 5511-16384 ID.-NR. 1244676-01 HEIDENHAIN ABSOLUTE ANGLE ENCODER (SINGLETURN) WITH INTEGRAL BEARING AND INTEGRATED STATOR COUPLING, SYSTEM ACCURACY ± 2.0'', DATA INTERFACE ENDAT22, POSITIONS PER REVOLUTION 268435456, SHAFT HOLLOW SHAFT, DIAMETER 35 MM, ELECTRICAL CONNECTION FLANGE SOCKET ULTRA-LOCK, MALE, 12-PIN

RCN 5391F-16384 ID.-NR. 1244679-01 HEIDENHAIN ABSOLUTE ANGLE ENCODER (SINGLETURN) WITH INTEGRAL BEARING AND INTEGRATED STATOR COUPLING SYSTEM ACCURACY ± 4.0'', POSITIONS PER REVOLUTION 67108864, SHAFT HOLLOW SHAFT, DIAMETER 35 MM, ELECTRICAL CONNECTION FLANGE SOCKET ULTRA-LOCK, MALE, 12-PIN

RCN 8591F-32768 ID.-NR. 1244759-01 HEIDENHAIN ABSOLUTE ANGLE ENCODER (SINGLETURN) WITH INTEGRAL BEARING AND INTEGRATED STATOR COUPLING SYSTEM ACCURACY ±1.0'', POSITIONS PER REVOLUTION 536870912, SHAFT HOLLOW SHAFT, DIAMETER 100 MM, ELECTRICAL CONNECTION FLANGE SOCKET ULTRA-LOCK, MALE, 12-PIN

RON 275-18000 ID.-NR. 578238-02 HEIDENHAIN INCREMENTAL ANGLE ENCODER WITH INTEGRAL BEARING AND INTEGRATED STATOR COUPLING LINE COUNT 18000, SYSTEM ACCURACY ±5.0'', OUTPUT SIGNAL TTLX5, SHAFT HOLLOW THROUGH SHAFT FOR AXIAL CLAMPING, DIAMETER 20 MM, WITH FRONTAL THREADED MOUNTING HOLES, ELECTRICAL CONNECTION COUPLING M16, MALE 12-PIN, CONNECTING DIRECTION CABLE OUTLET FOR AXIAL AND RADIAL USE, CABLE LENGTH 1,00 M

EQN 425-512 ID.-NR. 1353131-03 HEIDENHAIN ROTARY ENCODER WITH INTEGRAL BEARING DIFFERENTIABLE REVOLUTIONS 4096, POSITIONS PER REVOLUTION 8192, LINE COUNT 512, OUTPUT SIGNAL ~1VPP, SHAFT BLIND HOLLOW SHAFT WITH CLAMPING RING, DIAMETER 12 MM, DEPTH 24 MM, ELECTRICAL CONNECTION FREE CABLE END, CONNECTING DIRECTION CABLE OUTLET FOR AXIAL AND RADIAL USE, CABLE LENGTH 1,00 M

ROD 1020-1024 ID.-NR. 534900-39 HEIDENHAIN INCREMENTAL ROTARY ENCODER WITH INTEGRAL BEARING FOR SEPARATE SHAFT COUPLING LINE COUNT 1024 OUTPUT SIGNAL TTL ELECTRICAL CONNECTION FREE CABLE END CONNECTING DIRECTION CABLE OUTLET FOR AXIAL AND RADIAL USE CABLE LENGTH 1.00 M

ROD 426-2500 ID.-NR. 376846-13 HEIDENHAIN INCREMENTAL ROTARY ENCODER WITH INTEGRAL BEARING FOR SEPARATE SHAFT COUPLING LINE COUNT 2500, OUTPUT SIGNAL TTL, SHAFT SOLID SHAFT, DIAMETER 6 MM, LENGTH 9.5 MM, ELECTRICAL CONNECTION CONNECTOR M23, MALE,  12-PIN, CONNECTING DIRECTION CABLE OUTLET FOR AXIAL AND RADIAL USE, CABLE LENGTH 1.00 M

ECN 413-2048 ID.-NR. 1065932-23 HEIDENHAIN ROTARY ENCODER WITH INTEGRAL BEARING, POSITIONS PER REVOLUTION 8192, DATA INTERFACE ENDAT01, OUTPUT CODE BINARY, LINE COUNT 2048, OUTPUT SIGNAL ~1VPP, SHAFT TAPERED SHAFT 1 TO 10, FUNCTIONAL DIAMETER 9.25 MM, BACK-OFF THREAD M10 AND M6, ELECTRICAL CONNECTION FREE CABLE END, CABLE LENGTH 5.00 M

ROQ 424-512-03S17-58K ID.-NR. 1353117-82 HEIDENHAIN ABSOLUTE ROTARY ENCODER (MULTITURN) WITH INTEGRAL BEARING FOR SEPARATE SHAFT COUPLING, DIFFERENTIABLE REVOLUTIONS 4096, POSITIONS PER REVOLUTION 4096, DATA INTERFACE SSI07R1, OUTPUT CODE GRAY, LINE COUNT 512, OUTPUT SIGNAL ~1VPP, SHAFT SOLID SHAFT, DIAMETER 6 MM, LENGTH 9.5 MM, ELECTRICAL CONNECTION COUPLING M23, MALE, 17-PIN, CONNECTING DIRECTION CABLE OUTLET FOR AXIAL AND RADIAL USE, CABLE LENGTH 1.00 M

ROD 429-1024 ID.-NR. 514777-24 HEIDENHAIN INCREMENTAL ROTARY ENCODER WITH INTEGRAL BEARING FOR SEPARATE SHAFT COUPLING LINE COUNT 1024, OUTPUT SIGNAL TTL, SHAFT SOLID SHAFT, DIAMETER 10 MM, LENGTH 20 MM, ELECTRICAL CONNECTION FLANGE SOCKET M23, MALE, 12-PIN WITH POLARIZING PIN, CONNECTING DIRECTION RADIAL

ECN 113-2048 ID.-NR. 810800-59 HEIDENHAIN SINGLETURN ROTARY ENCODER WITH INTEGRAL BEARING POSITIONS PER REVOLUTION 8192, LINE COUNT 2048, OUTPUT SIGNAL ~1VPP, SHAFT HOLLOW THROUGH SHAFT WITH ECCENTRIC CLAMPING, DIAMETER 38 MM, ELECTRICAL CONNECTION FLANGE SOCKET M23, MALE, 17-PIN, CONNECTING DIRECTION RADIAL

ROC 425-2048 ID.-NR. 1322268-01 HEIDENHAIN ABSOLUTE ROTARY ENCODER (SINGLETURN) WITH INTEGRAL BEARING FOR SEPARATE SHAFT COUPLING DATA INTERFACE ENDAT22 OUTPUT CODE BINARY LINE COUNT 2048 SHAFT SOLID SHAFT, DIAMETER 6 MM, LENGTH 9.5 MM TYPE OF SHAFT 73A ELECTRICAL CONNECTION FLANGE SOCKET M12, MALE, 8-PIN CONNECTING DIRECTION RADIAL

ERN 1185-2048 ID.-NR. 316278-16 HEIDENHAIN INCREMENTAL ROTARY ENCODER, LINE COUNT 2048

ROC 413 ID.-NR. 272371-0H HEIDENHAIN SINGLETURN-GRAY-CODE-DREHGEBER, DATENAUSGANG PARALLEL IM HTL-PEGEL, STEIGENDE WERTE IM UHRZEIGERSINN (AUF DIE WELLE GESEHEN), AUFLÖSUNG 8192 SCHRITTE/UMDREHUNG, WELLE DURCHMESSER 6 MM SYNCHROFLANSCH, DURCHMESSER 50 MM, KABELAUSGANG RADIAL OHNE KUPPLUNG, KABELLÄNGE 1,00 M

EQN 425-512 ID.-NR. 317941-05 HEIDENHAIN MULTITURN ROTARY ENCODER FOR INTEGRATION WITH INTEGRAL BEARING AND STATOR COUPLING, LINE COUNT 512

ERN 1080-1024 ID.-NR. 322818-05 HEIDENHAIN INCREMENTAL MODULAR ENCODER, OUTPUT SIGNALS SINUSOIDAL/VOLTAGE 1VSS, CYLINDER SHAFT DIAMETER 6MM, CLAMPING ON CAP SIDE, ELECTRICAL CONNECTION CABLE 1M WITHOUT CONNECTOR CAN BE USED AXIALLY AND RADIALLY, LINES 1024

ERN 1080-2048 ID.-NR. 322818-42 HEIDENHAIN INCREMENTAL MODULAR ENCODER, OUTPUT SIGNALS SINUSOIDAL/VOLTAGE 1VPP, SHAFT DIAMETER 6MM, CLAMPING ON CAP SIDE, ELECTRICAL CONNECTION CABLE 1M WITH COUPLING CAN BE USED AXIALLY AND RADIALLY, LINES 2048

EQN 425-2048 ID.-NR. 323184-01 HEIDENHAIN PROGRAMMIERBARER MULTITURN-CODEDREHGEBER MIT EINSEITIG OFFENER HOHLWELLE UND STATORKUPPLUNG, MESSBEREICH 4096 UNTERSCHEIDBARE UMDR. (PROGRAMMIERBAR), AUFLÖSUNG 8192 POS./UMDREHUNGEN (PROGRAMMIERBAR), AUSGANGSCODE GRAY-CODE, ANBAUART STATORKUPPLUNG FÜR PLANFLÄCHEN, WELLENDURCHMESSER HOHLWELLE DURCHMESSER 12MM, INKREMENTALSIGNALE SINUSFÖRMIGE SPANNUNGS- SIGNALE (1VSS), SIGNALPERIODEN 2048, DREHRICHTUNG STEIGENDE WERTE B. RECHTS- DREHUNG (PROGRAMMIERBAR), ELEKTRISCHER ANSCHLUSS FLANSCHDOSE RADIAL STIFT 17-POLIG

ROD 426-360-27S12-03 ID.-NR. 376846-LV HEIDENHAIN INCREMENTAL ROTARY ENCODER WITH INTEGRAL BEARING FOR SEPARATE SHAFT COUPLING, LINE COUNT 360, OUTPUT SIGNAL TTL, ELECTRICAL CONNECTION FLANGE SOCKET M23, MALE, 12-PIN, CONNECTING DIRECTION RADIAL
