Drehgeber und Winkelmesssysteme

ROD 429-2500 ID.-NR. 514777-32 HEIDENHAIN INCREMENTAL ROTARY ENCODER WITH INTEGRAL BEARING FOR SEPARATE SHAFT COUPLING LINE COUNT: 2500, OUTPUT SIGNAL: TTL, ELECTRICAL CONNECTION: FLANGE SOCKET, MALE, 12-PIN WITH POLARIZING PIN, CONNECTING DIRECTION: RADIAL

ROD 250-18000 ID.-NR. 512128-04 HEIDENHAIN INCREMENTAL ANGLE ENCODER WITH INTEGRAL BEARING FOR SEPARATE SHAFT COUPLING LINE COUNT: 18000, SYSTEM ACCURACY: ±5.0'', OUTPUT SIGNAL: ~11µAPP, ELECTRICAL CONNECTION: CONNECTOR M23, MALE, 9-PIN, CONNECTING DIRECTION: CABLE OUTLET FOR AXIAL AND RADIAL USE, CABLE LENGTH: 1.00 M

RCN 226-16384 ID.-NR. 358655-10 HEIDENHAIN ABSOLUTE ANGLE ENCODER (SINGLETURN) WITH INTEGRAL BEARING FOR SEPARATE SHAFT COUPLING SYSTEM ACCURACY: 2.5 DATA INTERFACE: ENDAT01 POSITIONS PER REVOLUTION: 67108864, LINE COUNT: 16384, CONNECTING DIRECTION: CABLE OUTLET FOR AXIAL AND RADIAL USE, CABLE LENGTH: 3.00 M

ECN 113-2048 ID.-NR. 810800-32 HEIDENHAIN SINGLETURN ROTARY ENCODER WITH INTEGRAL BEARING POSITIONS PER REVOLUTION: 8192 DATA INTERFACE: ENDAT01, LINE COUNT: 2048, OUTPUT SIGNAL: ~1VPP, SHAFT: HOLLOW THROUGH SHAFT WITH ECCENTRIC CLAMPING, DIAMETER 25 MM, ELECTRICAL CONNECTION: FREE CABLE END, CONNECTING DIRECTION: CABLE OUTLET FOR AXIAL AND RADIAL USE, CABLE LENGTH: 1.00 M

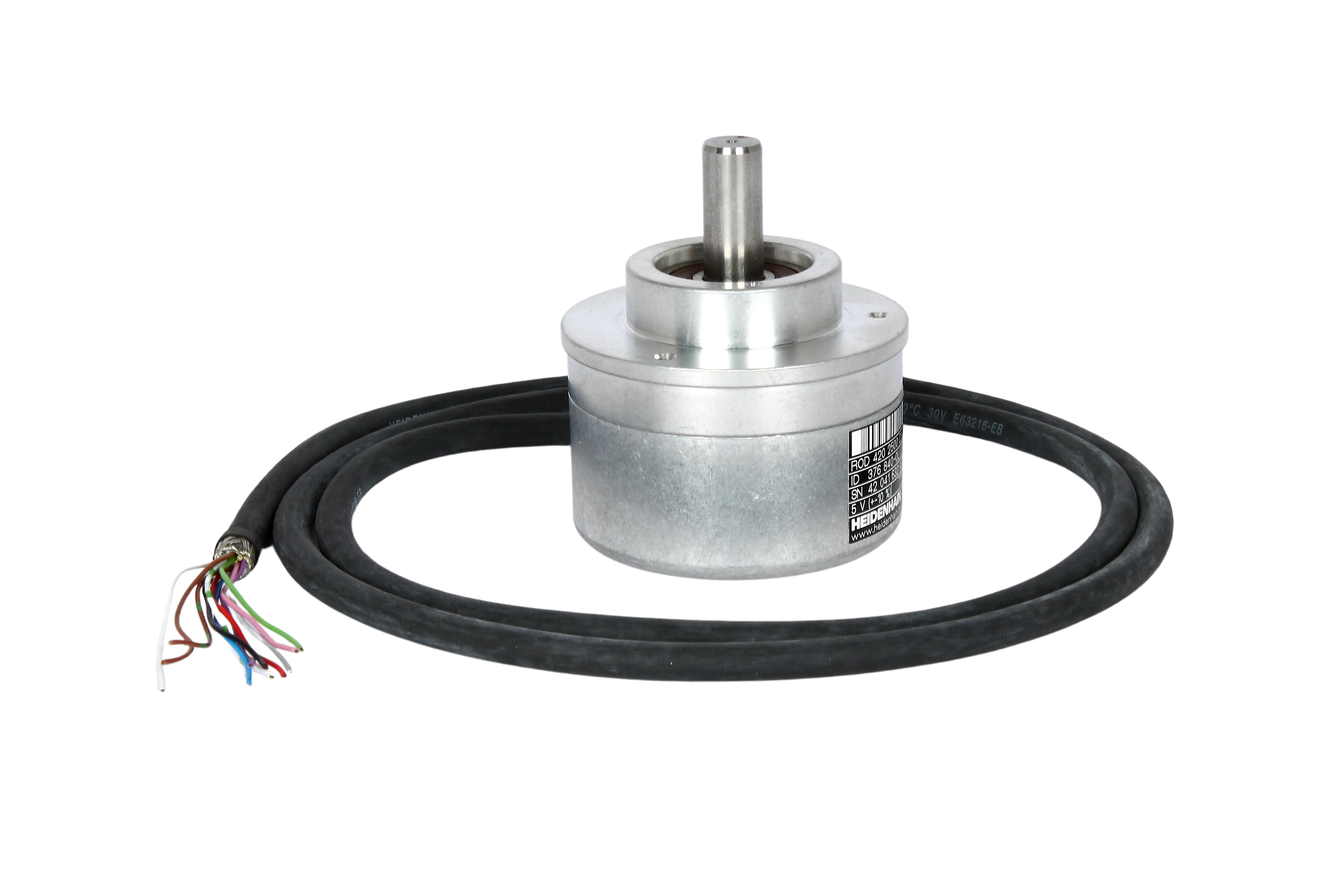

ROD 420-2500 ID.-NR. 376840-0L HEIDENHAIN INCREMENTAL ROTARY ENCODER WITH INTEGRAL BEARING FOR SEPARATE SHAFT COUPLING LINE COUNT: 2500, OUTPUT SIGNAL: TTL, ELECTRICAL CONNECTION: FREE CABLE END, CONNECTING DIRECTION: CABLE OUTLET FOR AXIAL AND RADIAL USE, CABLE LENGTH: 1.00 M

ROD 420-1024 ID.-NR. 376840-81 HEIDENHAIN INCREMENTAL ROTARY ENCODER WITH INTEGRAL BEARING FOR SEPARATE SHAFT COUPLING LINE COUNT: 1024 OUTPUT SIGNAL: TTL, ELECTRICAL CONNECTION: FREE CABLE END, CONNECTING DIRECTION: CABLE OUTLET FOR AXIAL AND RADIAL USE CABLE LENGTH: 1.00 M

ROD 426-100 I/U ID.-NR. 376846-M4 HEIDENHAIN INCREMENTAL ROTARY ENCODER WITH INTEGRAL BEARING FOR SEPARATE SHAFT COUPLING LINE COUNT 100 OUTPUT SIGNAL TTL, ELECTRICAL CONNECTION FLANGE SOCKET, MALE, 12-PIN, RADIAL

ROC 417-2048 ID.-NR. 682312-01 HEIDENHAIN ABSOLUTE ROTARY ENCODER (SINGLETURN) WITH INTEGRAL BEARING FOR SEPARATE SHAFT COUPLING POSITIONS PER REVOLUTION: 131072, LINE COUNT: 2048, OUTPUT SIGNAL: ~1VPP, SHAFT: SOLID SHAFT, DIAMETER 10 MM, LENGTH 20 MM, ELECTRICAL CONNECTION: FLANGE SOCKET, MALE, 17-PIN

ROD 426-1800 ID.-NR. 376846-F0 HEIDENHAIN INCREMENTAL ROTARY ENCODER WITH INTEGRAL BEARING FOR SEPARATE SHAFT COUPLING LINE COUNT: 1800, OUTPUT SIGNAL: TTL, ELECTRICAL CONNECTION: COUPLING, MALE 12-PIN, CONNECTING DIRECTION: CABLE OUTLET FOR AXIAL AND RADIAL USE, CABLE LENGTH: 1.00 M

ROD 426-3600 I/U ID.-NR. 376846-06 HEIDENHAIN INCREMENTAL ROTARY ENCODER WITH INTEGRAL BEARING FOR SEPARATE SHAFT COUPLING LINE COUNT 3600 OUTPUT SIGNAL TTL, ELECTRICAL CONNECTION FREE CABLE END, CABLE OUTLET FOR AXIAL AND RADIAL USE, 1,00M

ERN 180-5000 ID.-NR. 337640-09 HEIDENHAIN INCREMENTAL ROTARY ENCODER WITH STATOR COUPLING LINE COUNT 5000, OUTPUT SIGNAL 1VSS, SINUSOIDAL VOLTAGE SIGNALS, ELECTRICAL CONNECTION 27S12 FLANGE SOCKET, MALE 12-PIN, KABELAUSGANG RADIAL

RQN 425 512 27S12-71 I2C0 ID.-NR. 312210-14 HEIDENHAIN ROTARY ENCODER LINE COUNT 512

RCN 413-512-27S12-71I2C03 ID.-NR. 312209-14 HEIDENHAIN SINGLETURN- ABSOLUTENCODER LINE COUNT 512, ANALOGUE OUTPUT SIGNALS 1VPP SINUSOIDAL VOLTAGE SIGNALS, ELECTRICAL CONNECTION 27S12 FLANGE SOCKET MALE 12-PIN, CONNECTION DIRECTION RADIAL

ECN 225-2048 ID.-NR. 536300-07 HEIDENHAIN ABSOLUTE ANGLE ENCODER (SINGLETURN) WITH INTEGRAL BEARING FOR MOUNTING BY STATOR COUPLING SYSTEM ACCURACY: ± 10.0'' DATA INTERFACE: ENDAT02 SYNCHRONOUS SERIAL ENDAT 2.2 WITH INCREMENTAL SIGNALS POSITIONS PER REVOLUTION: 33554432, LINE COUNT: 2048 OUTPUT SIGNAL: ~1VPP, SHAFT: HOLLOW THROUGH SHAFT FOR AXIAL CLAMPING DIAMETER 20 MM WIRH FRONTAL THREADED MOUNTING HOLES, ELECTRICAL CONNECTION: COUPLING, MALE 17-PIN, CONNECTING DIRECTION: CABLE OUTLET FOR AXIAL AND RADIAL USE CABLE LENGTH: 0.30 M

ERN 1387-2048 ID.-NR. 608289-01 HEIDENHAIN INCREMENTAL ROTARY ENCODER WITH INTEGRAL BEARING FOR MOUNTING BY STATOR COUPLING LINE COUNT: 2048, OUTPUT SIGNAL: ~1.05VPP, ELECTRICAL CONNECTION: PLUG CONNECTOR, STRAIGHT, DOUBLE-ROW, 14-PIN, WITH LOCKING MECHANISM AND WALLS, CONNECTING DIRECTION: CABLE OUTLET FOR AXIAL AND RADIAL USE

EQN 1325.020-2048 ID.-NR. 538234-51 HEIDENHAIN ROTARY ENCODER WITH INTEGRAL BEARING DIFFERENTIABLE REVOLUTIONS: 4096 POSITIONS PER REVOLUTION: 8192, LINE COUNT: 2048, OUTPUT SIGNAL: ~1VPP, SHAFT: TAPERED SHAFT 1:10, FUNCTIONAL DIAMETER 9.25 MM, BACK-OFF THREAD M10 AND M6, ELECTRICAL CONNECTION: PLUG CONNECTOR, STRAIGHT, DOUBLE-ROW, 12-PIN, WITH LOCKING MECHANISM AND WALLS, CONNECTING DIRECTION: CABLE OUTLET FOR AXIAL AND RADIAL USE

EQN 1325.011-2048 ID.-NR. 515385-51 HEIDENHAIN MODULAR ROTARY ENCODER OUTPUT CODE: DUAL CODE ABSOLUTE SIGNALS: 8192 POSITIONS/REVOLUTION 4096 DIFFERENTIABLE REVOLUTIONS ENDAT INTERFACE DATA INTERFACE: SYNCHRONOUS SERIAL ENDAT 2.1 INCREMENTAL SIGNALS: 2048 POSITIONS/REVOLUTION SINUSOIDAL VOLTAGE SIGNALS (1 VSS) COUNT DIRECTION: ASCENDING CODE VALUES WITH CLOCKWISE ROTATION, ELECTRICAL CONNECTION: PCB CONNECTOR SHAFT: TAPER SHAFT 1:10, FUNCTIONAL DIAMETER 9.25MM

ERN 1381.036-2048 ID.-NR. 635066-56 HEIDENHAIN INCREMENTAL ROTARY ENCODER WITH INTEGRAL BEARING FOR MOUNTING BY STATOR COUPLING LINE COUNT: 2048 OUTPUT SIGNAL: ~1.05VPP, ELECTRICAL CONNECTION: PLUG CONNECTOR, STRAIGHT, DOUBLE-ROW, 14-PIN, WITH LOCKING MECHANISM AND WALLS, CONNECTING DIRECTION: CABLE OUTLET FOR AXIAL AND RADIAL USE

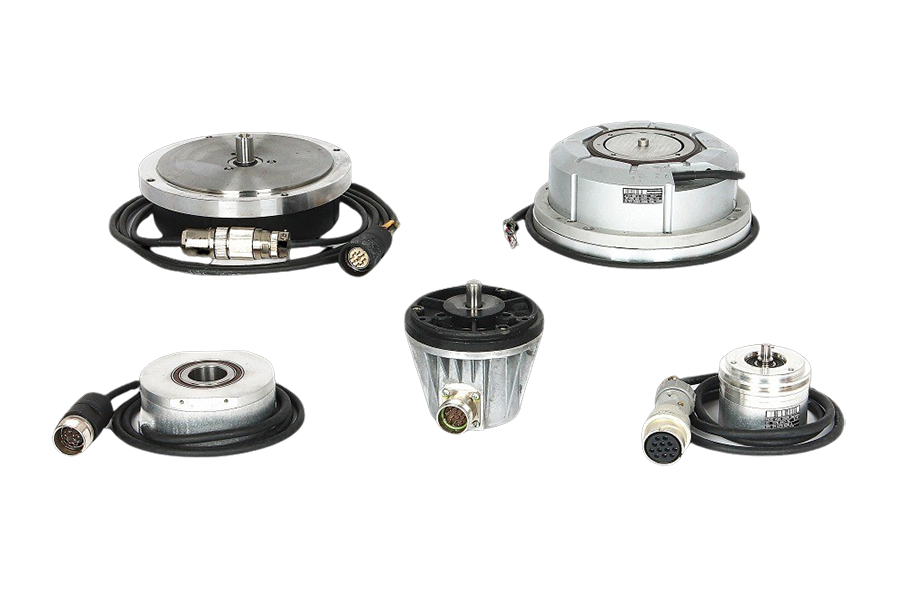

EQN 1125.003-512 ID.-NR. 353404-20 HEIDENHAIN ABSOLUTE ROTARY ENCODER (MULTITURN) WITH INTEGRAL BEARING FOR MOUNTING BY STATOR COUPLING DIFFERENTIABLE REVOLUTIONS: 4096 POSITIONS PER REVOLUTION: 8192, LINE COUNT: 512 OUTPUT SIGNAL: ~1VPP, SHAFT: HOLLOW SHAFT WITHOUT ADAPTER, WITHOUT SCREW, DIAMETER 6MM, ELECTRICAL CONNECTION: PLUG CONNECTOR, STRAIGHT, DOUBLE-ROW, 12-PIN, WITH LOCKING MECHANISM AND WALLS, CONNECTING DIRECTION: CABLE OUTLET FOR AXIAL AND RADIAL USE

ERN 1185-2048-69S14-70 ID.-NR. 316278-55 HEIDENHAIN INCREMENTAL ROTARY ENCODER LINE COUNT 2048, OUTPUT SIGNAL 1VSS SINUSOIDAL VOLTAGE SIGNALS, ELECTRICAL CONNECTION 69S14 PCB CONNECTOR MALE 14-PIN SHROUD W/BOARDLOCK, CONNECTION DIRECTION AXIAL AND RADIAL CABLE EXITS AVAILABLE

EQN 1125-512-62S12-78 ID.-NR. 353404-13 HEIDENHAIN ABSOLUTE ROTARY ENCODER (MULTITURN) WITH INTEGRAL BEARING FOR MOUNTING BY STATOR COUPLING DIFFERENTIABLE REVOLUTIONS: 4096, POSITIONS PER REVOLUTION: 8192, LINE COUNT: 512, OUTPUT SIGNAL: ~1VPP, SHAFT: HOLLOW SHAFT WITHOUT ADAPTER, WITHOUT SCREW, DIAMETER 6MM, ELECTRICAL CONNECTION: PLUG CONNECTOR, STRAIGHT, DOUBLE-ROW, 12-PIN, WITH LOCKING MECHANISM AND WALLS, CONNECTING DIRECTION: CABLE OUTLET FOR AXIAL AND RADIAL USE

EQN 1125-512 ID.-NR. 606699-17 HEIDENHAIN ABSOLUTER DREHGEBER (MULTITURN) MIT EIGENLAGERUNG ZUM ANBAU ÜBER STATORKUPPLUNG UNTERSCHEIDBARE UMDREHUNGEN: 4096, POSITIONEN PRO UMDREHUNG: 8192, STRICHZAHL: 512, AUSGANGSSIGNAL: ~1VSS, WELLE: EINSEITIG OFFENE HOHLWELLE FÜR AXIALKLEMMUNG, DURCHMESSER 6 MM, ELEKTRISCHER ANSCHLUSS: STIFTLEISTE, GERADE, 2-REIHIG, 15-POLIG, ANSCHLUSSRICHTUNG: KABELAUSGANG AXIAL UND RADIAL VERWENDBAR

ERN 1185-2048 ID.-NR. 316278-68 HEIDENHAIN ROTARY ENCODER LINE COUNT 2048, OUTPUT SIGNAL 1VSS SINUSOIDAL VOLTAGE SIGNALS, ELECTRICAL CONNECTION 69S14 PCB CONNECTOR MALE 14-PIN SHROUD W/BOARDLOCK, CONNECTION DIRECTION AXIAL AND RADIAL CABLE EXITS AVAILABLE

ECN 413-512 ID.-NR. 1132405-04 HEIDENHAIN ROTARY ENCODER WITH INTEGRAL BEARING POSITIONS PER REVOLUTION: 8192, LINE COUNT: 512, OUTPUT SIGNAL: ~1VPP, SHAFT: BLIND HOLLOW SHAFT WITH CLAMPING RING, DIAMETER 12 MM, DEPTH 24 MM, ELECTRICAL CONNECTION: FLANGE SOCKET, MALE, 17-PIN, CONNECTING DIRECTION: RADIAL

ERN 1381-2048 ID.-NR. 521298-03 HEIDENHAIN INCREMENTAL ROTARY ENCODER WITH INTEGRAL BEARING FOR MOUNTING BY STATOR COUPLING LINE COUNT: 2048, ELECTRICAL CONNECTION: PLUG CONNECTOR, STRAIGHT, DOUBLE-ROW, 14-PIN, WITH LOCKING MECHANISM AND WALLS, CONNECTING DIRECTION: CABLE OUTLET FOR AXIAL AND RADIAL USE

ROD 700-36000 ID.-NR. 298465-08 HEIDENHAIN ANGLE ENCODER LINES: 36000, ACCURACY: +/- 2 SEC., OUTPUT SIGNALS: 11UASS, REFERENCE MARKS: ONE ELECTRICAL CONNECTION: CABLE 3 M WITH CONNEC. CAN BE USED AX. OR RADIAL

ECN 113-2048 ID.-NR. 528101-17 HEIDENHAIN SINGLETURN ROTARY ENCODER WITH INTEGRAL BEARING POSITIONS PER REVOLUTION: 8192 DATA INTERFACE: SSI39N1, LINE COUNT: 2048, OUTPUT SIGNAL: ~1VPP, SHAFT: HOLLOW THROUGH SHAFT WITH ECCENTRICK CLAMPING; DIAMETER M 200, ELECTRICAL CONNECTION: FLANGE SOCKET, MALE, 17-PIN, CONNECTING DIRECTION: RADIAL

ECN 413AX/RA512l ID.-NR. 631709-27 HEIDENHAIN ROTARY ENCODER WITH INTEGRAL BEARING POSITIONS PER REVOLUTION: 8192, DATA INTERFACE: SSI39R1, LINE COUNT: 512, OUTPUT SIGNAL: ~1VPP, SHAFT: BLIND HOLLOW SHAFT WITH CLAMPING RING, DIAMETER 12 MM, DEPTH 24 MM, ELECTRICAL CONNECTION: COUPLING, MALE 17-PIN, CONNECTING DIRECTION: CABLE OUTLET FOR AXIAL AND RADIAL USE CABLE LENGTH: 1.00 M

ROD 420-1024 ID.-NR. 376840-40 HEIDENHAIN INCREMENTAL ROTARY ENCODER WITH INTEGRAL BEARING FOR SEPARATE SHAFT COUPLING, LINE COUNT 1024, OUTPUT SIGNAL TTL, FLANGE VERSION CLAMPING FLANGE 36 MM, BOLT CIRCLE Ø 48 MM, 3 X M3 SHAFT: SOLID SHAFT, DIAMETER 10 MM, LENGTH 20 MM, ELECTRICAL CONNECTION FREE CABLE END, CONNECTING DIRECTION CABLE OUTLET FOR AXIAL AND RADIAL USE, CABLE LENGTH 1.00 M

RON 285C-18000 ID.-NR. 358699-27 HEIDENHAIN INCREMENTAL ANGLE ENCODER WITH INTEGRAL BEARING AND INTEGRATED STATOR COUPLING LINE COUNT: 18000 SYSTEM ACCURACY: ±5.0'' OUTPUT SIGNAL: ~1VPP, REFERENCE MARK: ANALOG, REF. MARK CODED, NOMINAL INCREMENT 1000, ELECTRICAL CONNECTION: CONNECTOR M23, MALE, 12-PIN, CONNECTING DIRECTION: CABLE OUTLET FOR AXIAL AND RADIAL USE CABLE LENGTH: 1.00 M

ERN 1085-2048 ID.-NR. 534915-61 HEIDENHAIN INCREMENTAL ROTARY ENCODER WITH INTEGRAL BEARING FOR MOUNTING BY STATOR COUPLING LINE COUNT: 2048, OUTPUT SIGNAL: ~1VPP, CONNECTING DIRECTION: CABLE OUTLET FOR AXIAL AND RADIAL USE CABLE LENGTH: 1.00 M

ERN 1085-2048 ID.-NR. 316278-09 HEIDENHAIN INCREMENTAL ENCODER WITH STATOR-COUPLING LINE COUNT 2048, OUTPUT SIGNAL 1VSS SINUSOIDAL VOLTAGE SIGNALS, ELECTRICAL CONNECTION 01 FREE CABLE END, CONNECTION DIRECTION AXIAL AND RADIAL CABLE EXITS AVAILABLE, CABLE LENGTH 1,00 M

ROC 425-2048 ID.-NR. 683639-03 HEIDENHAIN ABSOLUTE ROTARY ENCODER (SINGLETURN) WITH INTEGRAL BEARING FOR SEPARATE SHAFT COUPLING POSITIONS PER REVOLUTION: 33554432, LINE COUNT: 2048, ELECTRICAL CONNECTION: FLANGE SOCKET M12, MALE, 8-PIN, CONNECTING DIRECTION: AXIAL

ERN 430-1024 ID.-NR. 385430-76 HEIDENHAIN INCREMENTAL ROTARY ENCODER WITH INTEGRAL BEARING FOR MOUNTING BY STATOR COUPLING LINE COUNT 1024, OUTPUT SIGNAL HTL, ELECTRICAL CONNECTION FREE CABLE END, CABLE OUTLET FOR AXIAL AND RADIAL USE

ROD 220-9000 ID.-NR. 512127-07 HEIDENHAIN INCREMENTAL ANGLE ENCODER WITH INTEGRAL BEARING FOR SEPARATE SHAFT COUPLING LINE COUNT: 9000, OUTPUT SIGNAL: TTLX2, ELECTRICAL CONNECTION: FREE CABLE END, CONNECTING DIRECTION: CABLE OUTLET FOR AXIAL AND RADIAL USE CABLE LENGTH: 1.00 M

ROC 413-2048 ID.-NR. 1109254-10 HEIDENHAIN ABSOLUTE ROTARY ENCODER (SINGLETURN) WITH INTEGRAL BEARING FOR SEPARATE SHAFT COUPLING POSITIONS PER REVOLUTION: 8192, OUTPUT CODE: DUAL LINE COUNT: 2048 OUTPUT SIGNAL: ~1VPP, ELECTRICAL CONNECTION: COUPLING, MALE 17-PIN, CONNECTING DIRECTION: CABLE OUTLET FOR AXIAL AND RADIAL USE CABLE LENGTH: 1.00 M

ROD 426-1000 ID.-NR. 249884-04 HEIDENHAIN INCREMENTAL ROTARY ENCODER LINE COUNT 1000, OUTPUT SIGNAL TTL SQUARE-WAVE SIGNALS, TTL LEVELS, ELECTRICAL CONNECTION 27S12 FLANGE SOCKET MALE 12-PIN, CONNECTION DIRECTION RADIAL

ROD 420-5000 ID.-NR.376840-1B HEIDENHAIN INCREMENTAL ROTARY ENCODER WITH INTEGRAL BEARING FOR SEPARATE SHAFT COUPLING LINE COUNT: 5000, OUTPUT SIGNAL: TTL, ELECTRICAL CONNECTION: FREE CABLE END, CONNECTING DIRECTION: CABLE OUTLET FOR AXIAL AND RADIAL USE CABLE LENGTH: 1.00 M

ROD 1020-3600 ID.-NR. 534900-05 HEIDENHAIN INCREMENTAL ROTARY ENCODER WITH INTEGRAL BEARING FOR SEPARATE SHAFT COUPLING LINE COUNT: 3600, OUTPUT SIGNAL: TTL, ELECTRICAL CONNECTION: FREE CABLE END, CONNECTING DIRECTION: CABLE OUTLET FOR AXIAL AND RADIAL USE CABLE LENGTH: 1.00 M

RON 285-18000 ID.-NR. 358699-04 HEIDENHAIN INCREMENTAL ANGLE ENCODER WITH INTEGRAL BEARING AND INTEGRATED STATOR COUPLING LINE COUNT: 18000 SYSTEM ACCURACY: ±5.0'' OUTPUT SIGNAL: ~1VPP, ELECTRICAL CONNECTION: COUPLING, MALE 12-PIN, CONNECTING DIRECTION: CABLE OUTLET FOR AXIAL AND RADIAL USE, CABLE LENGTH: 1.00 M

ECN 413-512 ID.-NR. 1132405-27 HEIDENHAIN ROTARY ENCODER WITH INTEGRAL BEARING POSITIONS PER REVOLUTION: 8192, LINE COUNT: 512, OUTPUT SIGNAL: ~1VPP, SHAFT: BLIND HOLLOW SHAFT WITH CLAMPING RING DIAMETER 12 MM, DEPTH 24 MM,  ELECTRICAL CONNECTION: COUPLING STUD 17-PIN, CABLE OUTLET USEFUL AXIAL AND RADIAL

ROQ 425-2048 ID.-NR. 1109256-19 HEIDENHAIN ABSOLUTE ROTARY ENCODER (MULTITURN) WITH INTEGRAL BEARING FOR SEPARATE SHAFT COUPLING DIFFERENTIABLE REVOLUTIONS: 4096 POSITIONS PER REVOLUTION: 8192 DATA INTERFACE: ENDAT01 OUTPUT CODE: DUAL LINE COUNT: 2048 OUTPUT SIGNAL: ~1VPP, ELECTRICAL CONNECTION: COUPLING, MALE 17-PIN, CONNECTING DIRECTION: CABLE OUTLET FOR AXIAL AND RADIAL USE CABLE LENGTH: 1.00 M

ROD 780-36000 ID.-NR. 383600-14 HEIDENHAIN INCREMENTAL ANGLE ENCODER WITH INTEGRAL BEARING FOR SEPARATE SHAFT COUPLING LINE COUNT: 36000 SYSTEM ACCURACY: ±2.0'' OUTPUT SIGNAL: ~1VPP, REFERENCE MARK: ANALOG, ELECTRICAL CONNECTION: COUPLING, MALE 12-PIN, CONNECTING DIRECTION: CABLE OUTLET FOR AXIAL AND RADIAL USE CABLE LENGTH: 3.00 M

ROD 426-5000 ID.-NR. 376847-1E HEIDENHAIN INCREMENTAL ROTARY ENCODER WITH INTEGRAL BEARING FOR SEPARATE SHAFT COUPLING LINE COUNT: 5000, OUTPUT SIGNAL: TTL, ELECTRICAL CONNECTION: SOURIAU COUPLING, FEMALE, 12-PIN, CONNECTING DIRECTION: CABLE OUTLET FOR AXIAL AND RADIAL USE, CABLE LENGTH: 1.00 M

ROD 426-1024 ID.-NR. 376847-0P HEIDENHAIN INCREMENTAL ROTARY ENCODER WITH INTEGRAL BEARING FOR SEPARATE SHAFT COUPLING LINE COUNT: 1024 OUTPUT SIGNAL: TTL, ELECTRICAL CONNECTION: SOURIAU COUPLING, FEMALE, 12-PIN, CONNECTING DIRECTION: CABLE OUTLET FOR AXIAL AND RADIAL USE CABLE LENGTH: 1.00 M

RON 255-18000 ID.-NR. 228400-33 HEIDENHAIN INCREMENTAL ANGEL ENCODER LINE COUNT 18000, ACCURACY IN ANGULAR SECONDS 5,0, OUTPUT SIGNAL 11µASS SINUSOIDAL CURRENT SIGNALS, REFERENZ SIGNAL RA ANALOG, SHAFT DIMENSIONS 23A HOLLOW TROUGH SHAFT FOR AXIAL CLAMPING, DIAMETER 20 MM, ELECTRICAL CONNECTION 02S09 CONNECTOR MALE 9-PIN, CONNECTION DIRECTION RADIAL, CABLE LENGTH 6,00 M

ROD 486-2500 03S12-03 ID.-NR. 376886-3K HEIDENHAIN INCREMENTAL ROTARY ENCODER WITH INTEGRAL BEARING FOR SEPARATE SHAFT COUPLING LINE COUNT 2500

ROQ 436S-2048 ID.-NR. 1036786-01 HEIDENHAIN ABSOLUTE ROTARY ENCODER (MULTITURN) WITH INTEGRAL BEARING FOR SEPARATE SHAFT COUPLING DIFFERENTIABLE REVOLUTIONS: 4096, LINE COUNT: 2048, SHAFT: SOLID SHAFT WITH FLATTENING, DIAMETER 6MM, LENGTH 9.5MM, FLATTENING 0.5MM DEEP, LENGTH 9.3MM, ELECTRICAL CONNECTION: FLANGE SOCKET M12, MALE, 8-PIN, CONNECTING DIRECTION: RADIAL

ROD 426-2048 ID.-NR. 376846-FM HEIDENHAIN INCREMENTAL ROTARY ENCODER WITH INTEGRAL BEARING FOR SEPARATE SHAFT COUPLING LINE COUNT: 2048 OUTPUT SIGNAL: TTL, FLANGE VERSION: SYNCHRO FLANGE Ø 58 MM, CENTERING COLLAR 50 MM, BOLT CIRCLE Ø 42 MM, 3 X M4, ELECTRICAL CONNECTION: COUPLING, MALE 12-PIN, CONNECTING DIRECTION: CABLE OUTLET FOR AXIAL AND RADIAL USE CABLE LENGTH: 1.00 M

ROD 426-1800 ID.-NR. 376846-0B HEIDENHAIN INCREMENTAL ROTARY ENCODER WITH INTEGRAL BEARING FOR SEPARATE SHAFT COUPLING LINE COUNT: 1800, OUTPUT SIGNAL: TTL, ELECTRICAL CONNECTION: STECKER M23, STIFT, 12-POLIG, CONNECTING DIRECTION: CABLE OUTLET FOR AXIAL AND RADIAL USE, CABLE LENGTH: 1.00 M
