Sinamics G120

6SL3210-1KE15-8AP2 SIEMENS SINAMICS G120C RATED POWER 3AC380-480V +10/-20% 47-63HZ LOW OVERLOAD: 2,2KW AT 150% 3S, 110% 57S, 100% 240S HIGH OVERLOAD: 1,5KW AT 200% 3S, 150% 57S, 100% 240S INTEGRATED FILTER CLASS A EXTERNAL 24V I/O INTERFACE: 6DI, 2DO,1AI,1AO, 1MOT_T SAFE TORQUE OFF INTEGRATED FIELDBUS: PROFIBUS-DP PROTECTION: IP20/ UL OPEN TYPE SIZE: FSAA 173X73X155(HXWXD)

6SL3223-0DE21-1AG1 SIEMENS SINAMICS G120P POWER MODULE PM230 WITH INTEGRATED CLASS A FILTER DEGREE OF PROTECTION IP55/UL TYPE 12 380-480 V 3 AC +10/-10% 47-63 HZ POWER LOW OVERLOAD: 1.1KW AT 150% 3S, 110% 57S, 100% 240 S; AMBIENT TEMPERATURE -10 TO +40 °C (LO) 460X 154X 249 (HXWXD), FSA WITHOUT CONTROL UNIT AND OPERATING UNIT RELEASED FOR CU230P-2 FIRMWARE VERSION V4.3.2 OR HIGHER

6SL3225-0BE25-5AA0 SIEMENS SINAMICS G120 PM 250 POWER MODULE WITH INTEGRATED CLASS A FILTER CAPABLE OF ENERGY RECOVERY 380-480 V 3 AC +10/-10% 47-63 HZ POWER HIGH OVERLOAD: 5.5 KW AT 200% 3 S, 150% 57 S, 100% 240 S; AMBIENT TEMPERATURE -10 TO +50 °C, POWER LOW OVERLOAD: 7.5 KW AT 150% 3 S, 110% 57 S, 100% 240 S; AMBIENT TEMPERATURE -10 TO +40 °C 334X 189X 185 (HXWXD), FSC DEGREE OF PROTECTION IP20 WITHOUT CONTROL UNIT AND BOP

6SL3225-0BE35-5AA0 SIEMENS SINAMICS G120 POWER MODULE PM250 WITH BUILT IN CL. A FILTER POSSIBILITY OF REGENERATION 3AC380-480V +10/-10% 47-63HZ OUTPUT HIGH OVERLOAD: 55KW FOR 200% 3S,150% 57S,100% 240S AMBIENT TEMP 0 TO +50 DEG C OUTPUT LIGHT OVERLOAD: 75KW FOR 150% 3S,110% 57S,100% 240S AMBIENT TEMP 0 TO +40 DEG C 934 X 350 X 316 (HXWXD), FSF PROTECTION IP20 WITHOUT CONTROL UNIT AND BOP

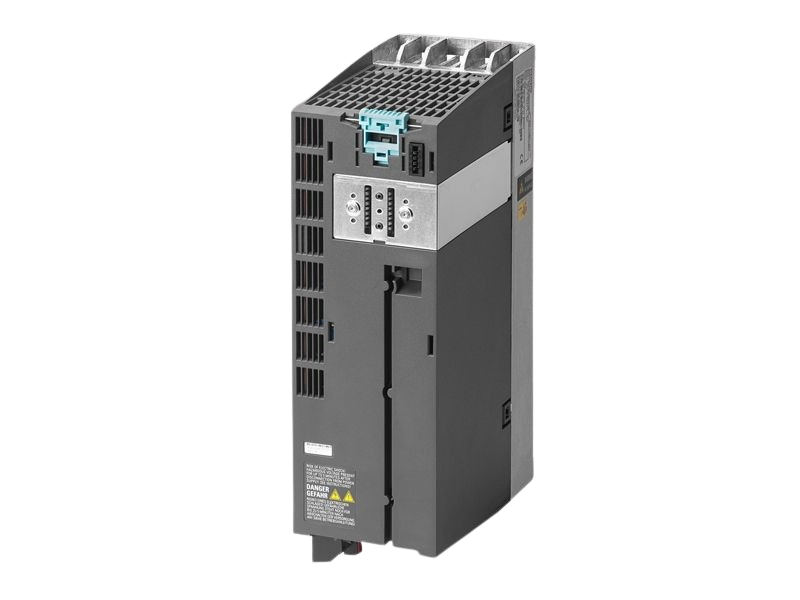

6SL3210-1NE22-6AL0 SIEMENS SINAMICS G120 POWER MODULE PM230 WITH INTEGRATED CLASS A FILTER DEGREE OF PROTECTION IP20 380-480 V 3 AC +10/-10% 47-63 HZ POWER LOW OVERLOAD: 11KW AT 150% 3S, 110% 57S, 100% 240 S; AMBIENT TEMPERATURE 0 TO +40 °C (LO) 355X 140X 165 (HXWXD), FSC WITHOUT CONTROL UNIT AND OPERATING UNIT RELEASED FOR CU240B/E-2 AND CU230P-2 FIRMWARE VERSION V4.4 OR HIGHER NOTE: PM230 SUPPORTED NO SAFETY

6SL3210-1NE28-8AL0 SIEMENS SINAMICS G120 POWER MODULE PM230 WITH INTEGRATED CLASS A FILTER DEGREE OF PROTECTION IP20 380-480 V 3AC +10/-10% 47-63 HZ POWER LOW OVERLOAD: 45 KW AT 110% 60 S, 100% 240 S AMBIENT TEMPERATURE 0 TO +40 °C (LO) 635X 275X 204 (HXWXD), FSE WITHOUT CONTROL UNIT AND OPERATING UNIT RELEASED FOR CU240B/E-2 AND CU230P-2 FIRMWARE VERSION V4.4 OR HIGHER NOTE: PM230 SUPPORTED NO SAFETY

6SL3255-0AA00-4JA0 SIEMENS SINAMICS G120 INTELLIGENT OPERATOR PANEL (IOP)

6SL3255-0AA00-4JA1 SIEMENS SINAMICS G120 INTELLIGENT OPERATOR PANEL IOP OPTIONAL OPERATOR PANEL FOR SINAMICS G120, G120P, G110M, G110D, G120D, G120C, S110, ET200S FC, ET200PRO FC

6SL3255-0AA00-4CA1 SIEMENS SINAMICS G120 BASIC OPERATOR PANEL (BOP-2)

6SL3255-0AA00-4BA0 SIEMENS SINAMICS G110 BASIC OPERATOR PANEL (BOP)

6SL3256-0AP00-0JA0 SIEMENS SINAMICS G120 DOOR MOUNTING KIT IP54/UL TYP12 FOR INTELLIGENT OPERATOR PANEL AND BASIC OPERATOR PANEL BOP-2 CONTAINS SEAL, MOUNTING MATERIAL AND CONNECTION CABLE (5M)

6SL3255-0AA00-4JA2 SIEMENS SINAMICS G INTELLIGENT OPERATOR PANEL IOP-2 FOR SINAMICS G120, G120P G110M, G110D, G120D, G120C ET 200PRO FC-2 LANGUAGE SETTINGS: GERMAN, ENGLISH, FRENCH ITALIAN, SPANISH PORTUGUESE, DUTCH SWEDISH, RUSSIAN CZECH, POLISH TURKISH, FINNISH CHINESISCH SIMPLIFIED NOTE: KC CERTIFICATE AVAILABLE SOON

6SL3054-7TF00-2BA0 SIEMENS SINAMICS G120 SD CARD 512 MB INCL. LICENSING (CERTIFICATE OF LICENSE) V4.7 SP10 HF6
