Sinamics G120

6SL3210-1NE21-3AL1 SIEMENS SINAMICS G120 POWER MODULE PM230 WITH INTEGRATED CLASS A FILTER DEGREE OF PROTECTION IP20 380-480 V 3 AC +10/-10% 47-63 HZ POWER LOW OVERLOAD: 5.5KW AT 150% 3S, 110% 57S, 100% 240 S; AMBIENT TEMPERATURE 0 TO +40 °C (LO) 292X 100X 165 (HXWXD), FSB WITHOUT CONTROL UNIT AND OPERATING UNIT RELEASED FOR CU240B/E-2 AND CU230P-2 FIRMWARE VERSION V4.4 OR HIGHER NOTE: PM230 SUPPORTED NO SAFETY

6SL3210-1NE21-3AG1 SIEMENS SINAMICS G120 POWER MODULE PM230 WITH INTEGRATED CLASS A FILTER DEGREE OF PROTECTION IP20 380-480 V 3 AC +10/-10% 47-63 HZ POWER LOW OVERLOAD: 5.5KW AT 150% 3S, 110% 57S, 100% 240 S; AMBIENT TEMPERATURE 0 TO +40 °C (LO) 292X 100X 165 (HXWXD), FSB WITHOUT CONTROL UNIT AND OPERATING UNIT RELEASED FOR CU240B/E-2 AND CU230P-2 FIRMWARE VERSION V4.4 OR HIGHER

6SL3210-1KE21-7AB1 SIEMENS SINAMICS G120C RATED POWER 7,5KW WITH 150% OVERLOAD FOR 3 SEC 3AC380-480V +10/-20% 47-63HZ INTEGRATED FILTER CLASS A I/O-INTERFACE: 6DI, 2DO,1AI,1AO SAFE TORQUE OFF INTEGRATED FIELDBUS: USS/ MODBUS RTU PROTECTION: IP20/ UL OPEN TYPE SIZE: FSB 196X100X203(HXWXD) EXTERNAL 24V

6SL3210-1KE18-8UF1 SIEMENS SINAMICS G120C RATED POWER 4,0KW WITH 150% OVERLOAD FOR 3 SEC 3AC380-480V +10/-20% 47-63HZ UNFILTERED I/O-INTERFACE: 6DI, 2DO,1AI,1AO SAFE TORQUE OFF INTEGRATED FIELDBUS: PROFINET-PN PROTECTION: IP20/ UL OPEN TYPE SIZE: FSA 196X73X225,4(HXWXD) EXTERNAL 24V

6SL3210-1KE18-8UP1 SIEMENS SINAMICS G120C RATED POWER 4,0KW WITH 150% OVERLOAD FOR 3 SEC 3AC380-480V +10/-20% 47-63HZ UNFILTERED I/O-INTERFACE: 6DI, 2DO,1AI,1AO SAFE TORQUE OFF INTEGRATED FIELDBUS: PROFIBUS-DP PROTECTION: IP20/ UL OPEN TYPE SIZE: FSA 196X73X203(HXWXD) EXTERNAL 24V

6SL3224-0BE21-1UA0 SIEMENS SINAMICS G120 PM 240 POWER MODULE UNFILTERED WITH INTEGRATED BRAKING CHOPPER 380-480 V 3 AC +10/-10% 47-63 HZ POWER HIGH OVERLOAD: 1.1 KW AT 200% 3 S, 150% 57 S, 100% 240 S; AMBIENT TEMPERATURE -10 TO +50 °C 173X 73X 145 (HXWXD), FSA DEGREE OF PROTECTION IP20 WITHOUT CONTROL UNIT AND BOP

6SL3210-1KE22-6UB1 SIEMENS SINAMICS G120C RATED POWER 11,0KW WITH 150% OVERLOAD FOR 3 SEC 3AC380-480V +10/-20% 47-63HZ UNFILTERED I/O-INTERFACE: 6DI, 2DO,1AI,1AO SAFE TORQUE OFF INTEGRATED FIELDBUS: USS/ MODBUS RTU PROTECTION: IP20/ UL OPEN TYPE SIZE: FSC 295X140X203(HXWXD) EXTERNAL 24V

6SL3210-1NE23-2AL1 SIEMENS SINAMICS G120 POWER MODULE PM230 WITH INTEGRATED CLASS A FILTER DEGREE OF PROTECTION IP20 380-480 V 3 AC +10/-10% 47-63 HZ POWER LOW OVERLOAD: 15KW AT 150% 3S, 110% 57S, 100% 240 S; AMBIENT TEMPERATURE 0 TO +40 °C (LO) 355X 140X 165 (HXWXD), FSC WITHOUT CONTROL UNIT AND OPERATING UNIT RELEASED FOR CU240B/E-2 AND CU230P-2 FIRMWARE VERSION V4.4 OR HIGHER NOTE: PM230 SUPPORTED NO SAFETY

6SL3210-1PE22-7AL0 SIEMENS SINAMICS POWER MODULE PM240-2 WITH BUILT IN CL. A FILTER WITH BUILT IN BRAKING CHOPPER 3AC380-480V +10/-10% 47-63HZ OUTPUT HIGH OVERLOAD: 7,5KW FOR 200% 3S,150% 57S,100% 240S AMBIENT TEMP -10 TO +50 DEG C OUTPUT LOW OVERLOAD: 11KW FOR 150% 3S,110% 57S,100% 240S AMBIENT TEMP -10 TO +40 DEG C 355 X 140 X 165 (HXWXD), FSC PROTECTION IP20 WITHOUT CONTROL UNIT AND PANEL APPROVED FOR CU FIRMWARE- VERSION V4.6

6SL3210-1NE23-2AG1 SIEMENS SINAMICS G120 POWER MODULE PM230 WITH INTEGRATED CLASS A FILTER DEGREE OF PROTECTION IP20 380-480 V 3 AC +10/-10% 47-63 HZ POWER LOW OVERLOAD: 15KW AT 150% 3S, 110% 57S, 100% 240 S; AMBIENT TEMPERATURE 0 TO +40 °C (LO) 355X 140X 165 (HXWXD), FSC WITHOUT CONTROL UNIT AND OPERATING UNIT RELEASED FOR CU240B/E-2 AND CU230P-2 FIRMWARE VERSION V4.4 OR HIGHER

6SL3310-1TE32-1AA3 SIEMENS SINAMICS S120 CONVERTER POWER MODULE 3AC 380-480V, 50/60HZ, 210A (110 KW) INTERNAL AIR COOLING FRAME SIZE: CHASSIS SUPPORT OF THE EXTENDED SAFETY INTEGRATED FUNCTIONS INCL. DRIVE-CLIQ CABLE AND MOUNTING PLATE FOR CU310

6SL3210-1PE31-8AL0 SIEMENS SINAMICS G120 POWER MODULE PM240-2 WITH BUILT IN CL. A FILTER WITH BUILT IN BRAKING CHOPPER 3AC380-480V +10/-20% 47-63HZ OUTPUT HIGH OVERLOAD: 75KW FOR 200% 3S,150% 57S,100% 240S AMBIENT TEMP -20 TO +50 DEG C (HO) OUTPUT LOW OVERLOAD: 90kW FOR 150% 3S,110% 57S,100% 240S AMBIENT TEMP -20 TO +40 DEG C (LO) 708 X 305 X 357 (HXWXD), FSF PROTECTION IP20 WITHOUT CONTROL UNIT AND PANEL APPROVED FOR CU FIRMWARE- VERSION V4.7 HF8

6SL3210-1KE15-8AP1 SIEMENS SINAMICS G120C RATED POWER: 2.2 KW WITH 150% OVERLOAD FOR 3 S 380-480V3AC+10/-20% 47-63HZ INTEGRATED FILTER CLASS A I/O INTERFACE: 6 DI, 2 DQ, 1 AI, 1 AQ SAFE TORQUE OFF INTEGRATED FIELDBUS INTEGRATED: PROFIBUS DP DEGREE OF PROTECTION IP20/UL OPEN TYPE SIZE: FSA 196X 73X 203 (HXWXD) EXTERNAL 24 V

6SL3210-1NE22-6AG1 SIEMENS SINAMICS G120 POWER MODULE PM230 WITH INTEGRATED CLASS A FILTER DEGREE OF PROTECTION IP20 380-480 V 3 AC +10/-10% 47-63 HZ POWER LOW OVERLOAD: 11KW AT 150% 3S, 110% 57S, 100% 240 S; AMBIENT TEMPERATURE 0 TO +40 °C (LO) 355X 140X 165 (HXWXD), FSC WITHOUT CONTROL UNIT AND OPERATING UNIT RELEASED FOR CU240B/E-2 AND CU230P-2 FIRMWARE VERSION V4.4 OR HIGHER

6SL3210-1PE26-0AL0 SIEMENS SINAMICS G120 POWER MODULE PM240-2 WITH BUILT IN CL. A FILTER WITH BUILT IN BRAKING CHOPPER 3AC380-480V +10/-20% 47-63HZ OUTPUT HIGH OVERLOAD: 22KW FOR 200% 3S,150% 57S,100% 240S AMBIENT TEMP -20 TO +50 DEG C (HO) OUTPUT LOW OVERLOAD: 30KW FOR 150% 3S,110% 57S,100% 240S AMBIENT TEMP -20 TO +40 DEG C (LO) 472 X 200 X 237 (HXWXD), FSD PROTECTION IP20 WITHOUT CONTROL UNIT AND PANEL APPROVED FOR CU FIRMWARE- VERSION V4.7 HF8

6SL3210-1PB15-5AL0 SIEMENS SINAMICS POWER MODULE PM240-2 WITH BUILT IN CL. A FILTER WITH BUILT IN BRAKING CHOPPER 1/3AC200-240V +10/-10% 47-63HZ OUTPUT HIGH OVERLOAD: 0,75KW FOR 200% 3S,150% 57S,100% 240S AMBIENT TEMP -10 TO +50 DEG C OUTPUT LOW OVERLOAD: 1,1KW FOR 150% 3S,110% 57S,100% 240S AMBIENT TEMP -10 TO +40 DEG C 291 X 100 X 165 (HXWXD), FSB PROTECTION IP20 WITHOUT CONTROL UNIT AND PANEL APPROVED FOR CU FIRMWARE- VERSION V4.6

6SL3210-1KE17-5AF1 SIEMENS SINAMICS G120C RATED POWER 3,0KW WITH 150% OVERLOAD FOR 3 SEC 3AC380-480V +10/-20% 47-63HZ INTEGRATED FILTER CLASS A I/O-INTERFACE: 6DI, 2DO,1AI,1AO SAFE TORQUE OFF INTEGRATED FIELDBUS: PROFINET-PN PROTECTION: IP20/ UL OPEN TYPE SIZE: FSA 196X73X225,4(HXWXD) EXTERNAL 24V

6SL3210-1KE14-3UF2 SIEMENS SINAMICS G120C RATED POWER 1,5KW WITH 150% OVERLOAD FOR 3 SEC 3AC380-480V +10/-20% 47-63HZ UNFILTERED I/O-INTERFACE: 6DI, 2DO,1AI,1AO SAFE TORQUE OFF INTEGRATED FIELDBUS: PROFINET-PN PROTECTION: IP20/ UL OPEN TYPE SIZE: FSAA 173X73X178(HXWXD) EXTERNAL 24V

6SL3224-0BE37-5UA0 SIEMENS SINAMICS G120 PM240 POWER MODULE UNFILTERED WITH INTEGRATED BRAKING CHOPPER 380-480 V 3 AC +10/-10% 47-63 HZ POWER HIGH OVERLOAD: 75 KW AT 200% 3 S,150% 57 S,100% 240 S AMBIENT TEMPERATURE -10 TO +50 °C POWER LOW OVERLOAD: 90 KW AT 150% 3 S,110% 57 S,100% 240 S AMBIENT TEMPERATURE -10 TO +40 °C 634 X 350 X 316 (HXWXD), FSF DEGREE OF PROTECTION IP20 WITHOUT CONTROL UNIT AND BOP

6SL3525-0PE27-5AA0 SIEMENS SINAMICS G120D PM250D POWER MODULE WITH INTEGRATED CLASS A FILTER CAPABLE OF ENERGY RECOVERY 380-480 V 3 AC +10/-10% 47-63 HZ POWER HIGH OVERLOAD: 7.5 KW AT 200% 3 S, 150% 60 S, 100% 300 S AMBIENT TEMPERATURE -10 TO +40 °C 210X 450X 220 (HXWXD), FSC DEGREE OF PROTECTION IP65 WITHOUT CONTROL UNIT

6SL3210-1KE23-8UB0 SIEMENS SINAMICS G120C RATED POWER: 18.5KW WITH 150% OVERLOAD FOR 3 SEC. 380-480V3AC+10/-20% 47-63HZ UNFILTERED I/O INTERFACE: 6DI, 2 DO, 1 AI, 1 AO SAFE-TORQUE-OFF INTEGRATED FIELDBUS INTEGRATED: USS/MODBUS RTU DEGREE OF PROTECTION IP20/UL OPEN TYPE VARIABLE: FSC 295X 140X 203 (HXWXD)

6SL3210-1NE31-5AL0 SIEMENS SINAMICS G120 POWER MODULE PM230 WITH BUILT IN CL. A FILTER PROTECTION IP20 3AC380-480V +10/-10% 47-63HZ OUTPUT LOW OVERLOAD: 75KW FOR 110% 60S,100% 240S AMBIENT TEMP 0 TO +40 DEG C(LO) 934X 350X 316 (HXWXD), FSF WITHOUT CONTROL UNIT AND PANEL APPROVED FOR CU240B/E-2 AND CU230P-2 FIRMWARE-VERSION V4.4 NOTE: PM230 DOES NOT SUPPORT SAFETY

6SL3210-1NE26-0AL0 SIEMENS SINAMICS G120 POWER MODULE PM230 WITH BUILT IN CL. A FILTER PROTECTION IP20 3AC380-480V +10/-10% 47-63HZ OUTPUT LOW OVERLOAD: 30KW FOR 110% 60S,100% 240S AMBIENT TEMP 0 TO +40 DEG C(LO) 419 X 275 X 204 (HXWXD), FSD WITHOUT CONTROL UNIT AND PANEL APPROVED FOR CU240B/E-2 AND CU230P-2 FIRMWARE-VERSION V4.4 NOTE: PM230 DOES NOT SUPPORT SAFETY

6SL3210-1KE21-3AB1 SIEMENS SINAMICS G120C RATED POWER 5,5KW WITH 150% OVERLOAD FOR 3 SEC 3AC380-480V +10/-20% 47-63HZ INTEGRATED FILTER CLASS A I/O-INTERFACE: 6DI, 2DO,1AI,1AO SAFE TORQUE OFF INTEGRATED FIELDBUS: USS/ MODBUS RTU PROTECTION: IP20/ UL OPEN TYPE SIZE: FSB 196X100X203(HXWXD) EXTERNAL 24V

6SL3210-1KE26-0AF1 SIEMENS SINAMICS G120C RATED POWER 30.0KW WITH 150% OVERLOAD FOR 3 SEC 3AC380-480V +10/-20% 47-63HZ INTEGRATED FILTER CLASS A I/O-INTERFACE: 6DI, 2DO, 1AI, 1AO SAFE TORQUE OFF INTEGRATED FIELDBUS: PROFINET-PN PROTECTION: IP20/ UL OPEN TYPE SIZE: FSD 472X 200X 237(HXWXD) EXTERNAL 24V

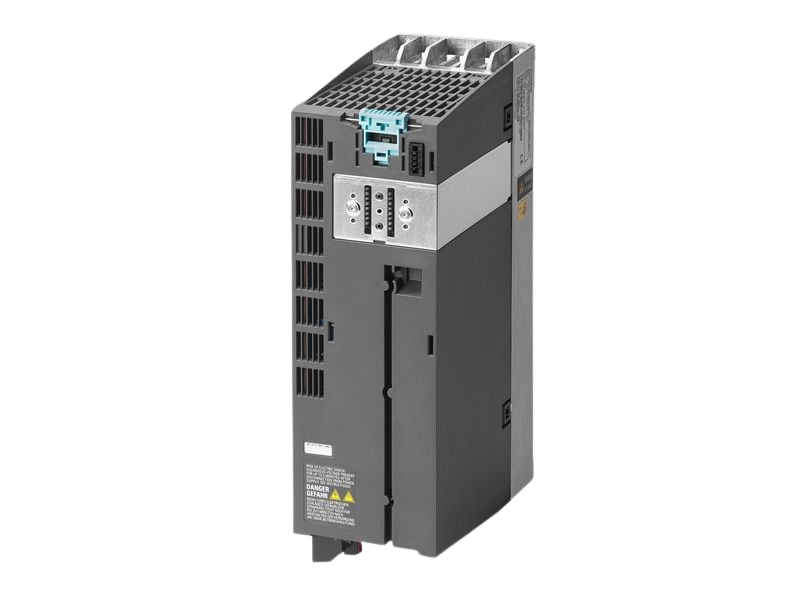

6SL3210-1NE23-8UG1 SIEMENS SINAMICS G120 POWER MODULE PM230 UNFILTERED DEGREE OF PROTECTION IP20 380-480 V 3 AC +10/-10% 47-63 HZ POWER LOW OVERLOAD: 18.5KW AT 150% 3S, 110% 57S, 100% 240 S; AMBIENT TEMPERATURE 0 TO +40 °C (LO) 355X 140X 165 (HXWXD), FSC WITHOUT CONTROL UNIT AND OPERATING UNIT RELEASED FOR CU240B/E-2 AND CU230P-2 FIRMWARE VERSION V4.4 OR HIGHER

6SL3210-1KE22-6AP1 SIEMENS SINAMICS G120C RATED POWER 3AC380-480V +10/-20% 47-63HZ LOW OVERLOAD: 11,0KW AT 150% 3S, 110% 57S, 100% 240S HIGH OVERLOAD: 7,5KW AT 200% 3S, 150% 57S, 100% 240S INTEGRATED FILTER CLASS A EXTERNAL 24V I/O INTERFACE: 6DI, 2DO,1AI,1AO, 1MOT_T SAFE TORQUE OFF INTEGRATED FIELDBUS: PROFIBUS-DP PROTECTION: IP20/ UL OPEN TYPE SIZE: FSC 295X140X203(HXWXD)

6SL3210-1KE18-8AB1 SIEMENS SINAMICS G120C RATED POWER 3AC380-480V +10/-20% 47-63HZ LOW OVERLOAD: 4,0KW AT 150% 3S, 110% 57S, 100% 240S HIGH OVERLOAD: 3,0KW AT 200% 3S, 150% 57S, 100% 240S INTEGRATED FILTER CLASS A EXTERNAL 24V I/O INTERFACE: 6DI, 2DO,1AI,1AO, 1MOT_T SAFE TORQUE OFF INTEGRATED FIELDBUS: USS/ MODBUS RTU PROTECTION: IP20/ UL OPEN TYPE SIZE: FSA 196X73X203(HXWXD)

6SL3525-0PE23-0AA1 SIEMENS SINAMICS G120D POWER MODULE PM250D WITH INTEGRATED CLASS A FILTER CAPABLE OF ENERGY RECOVERY. 380-480 V 3 AC+10/-10% 47-63HZ POWER HIGH OVERLOAD: 3.0KW AT 200% 3S, 150% 60S, 100% 300S AMBIENT TEMPERATURE -10 TO +55 °C 210X 450X 180 (HXWXD), FSB DEGREE OF PROTECTION IP65 WITHOUT CONTROL UNIT

6SL3210-1KE11-8AP2 SIEMENS SINAMICS G120C RATED POWER 3AC380-480V +10/-20% 47-63HZ LOW OVERLOAD: 0,55KW AT 150% 3S, 110% 57S, 100% 240S HIGH OVERLOAD: 0,37KW AT 200% 3S, 150% 57S, 100% 240S INTEGRATED FILTER CLASS A EXTERNAL 24V I/O INTERFACE: 6DI, 2DO,1AI,1AO, 1MOT_T SAFE TORQUE OFF INTEGRATED FIELDBUS: PROFIBUS-DP PROTECTION: IP20/ UL OPEN TYPE SIZE: FSAA 173X73X155(HXWXD)

6SL3255-0AA00-4JA0 SIEMENS SINAMICS G120 INTELLIGENT OPERATOR PANEL (IOP)

6SL3255-0AA00-4JA1 SIEMENS SINAMICS G120 INTELLIGENT OPERATOR PANEL IOP OPTIONAL OPERATOR PANEL FOR SINAMICS G120, G120P, G110M, G110D, G120D, G120C, S110, ET200S FC, ET200PRO FC

6SL3255-0AA00-4CA1 SIEMENS SINAMICS G120 BASIC OPERATOR PANEL (BOP-2)

6SL3255-0AA00-4BA0 SIEMENS SINAMICS G110 BASIC OPERATOR PANEL (BOP)

6SL3256-0AP00-0JA0 SIEMENS SINAMICS G120 DOOR MOUNTING KIT IP54/UL TYP12 FOR INTELLIGENT OPERATOR PANEL AND BASIC OPERATOR PANEL BOP-2 CONTAINS SEAL, MOUNTING MATERIAL AND CONNECTION CABLE (5M)

6SL3255-0AA00-4JA2 SIEMENS SINAMICS G INTELLIGENT OPERATOR PANEL IOP-2 FOR SINAMICS G120, G120P G110M, G110D, G120D, G120C ET 200PRO FC-2 LANGUAGE SETTINGS: GERMAN, ENGLISH, FRENCH ITALIAN, SPANISH PORTUGUESE, DUTCH SWEDISH, RUSSIAN CZECH, POLISH TURKISH, FINNISH CHINESISCH SIMPLIFIED NOTE: KC CERTIFICATE AVAILABLE SOON

6SL3054-7TF00-2BA0 SIEMENS SINAMICS G120 SD CARD 512 MB INCL. LICENSING (CERTIFICATE OF LICENSE) V4.7 SP10 HF6
