1FT7

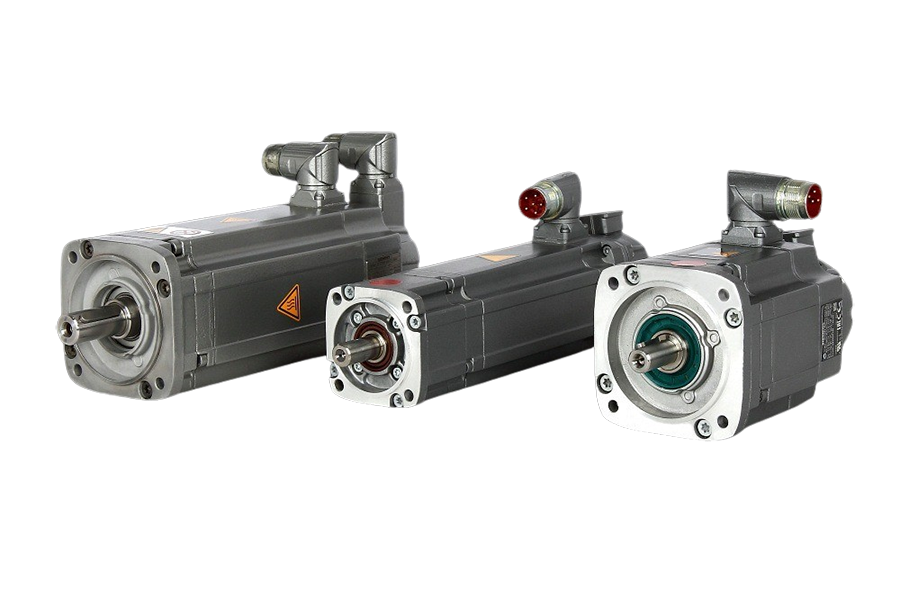

1FT7034-5AK71-1CH1 SIEMENS SIMOTICS S SYNCHRONOUS MOTOR 1FT7, M0=2NM (100K) NN=6000RPM, PN=0.88KW NATURALLY COOLED FRAME SIZE IMB 5 (IM V1, IM V3) CONVENTIONAL FLANGE (1FT6/1FK7 COMPATIBLE) POWER CONNECTOR ROTATABLE ABSOLUTE ENCODER 24 BITS + 12 BIT MULTITURN WITH DRIVE-CLIQ INTERFACE (ENCODER AM24DQI) PLAIN SHAFT, WITH HOLDING BRAKE; ACCURACY TOLERANCE N VIBRATION SEVERITY GRADE A, DEGREE OF PROTECTION IP 65

1FT7042-5AK71-1MG1 SIEMENS SIMOTICS S SYNCHRONOUS MOTOR 1FT7, M0=3NM (100K) NN=6000RPM, PN=1.26KW NATURALLY COOLED FRAME SIZE IMB 5 (IM V1, IM V3) CONVENTIONAL FLANGE (1FT6/1FK7 COMPATIBLE), WITH KTY TEMPERATURE SENSOR POWER CONNECTOR ROTATABLE ABSOLUTE ENCODER ENDAT 2048 S/R (ENCODER A-2048) CONNECTOR ROTATABLE PLAIN SHAFT, W/O HOLDING BRAKE; ACC. TOLERANCE N VIBRATION SEVERITY GRADE A, DEGREE OF PROTECTION IP 65

1FT7042-5AK71-1MG1-Z SIEMENS SIMOTICS S SYNCHRONOUS MOTOR 1FT7, M0=3NM (100K) NN=6000RPM, PN=1.26KW NATURALLY COOLED FRAME SIZE IMB 5 (IM V1, IM V3) CONVENTIONAL FLANGE (1FT6/1FK7 COMPATIBLE), WITH KTY TEMPERATURE SENSOR POWER CONNECTOR ROTATABLE ABSOLUTE ENCODER ENDAT 2048 S/R (ENCODER A-2048) CONNECTOR ROTATABLE PLAIN SHAFT, W/O HOLDING BRAKE; ACC. TOLERANCE N VIBRATION SEVERITY GRADE A, DEGREE OF PROTECTION IP 65

1FT7034-5AK71-1FG1 SIEMENS SIMOTICS S SYNCHRONOUS MOTOR 1FT7, M0=2NM (100K) NN=6000RPM, PN=0.88KW NATURALLY COOLED FRAME SIZE IMB 5 (IM V1, IM V3) CONVENTIONAL FLANGE (1FT6/1FK7 COMPATIBLE) POWER CONNECTOR ROTATABLE ABSOLUTE ENCODER 22 BITS MULTI TURN WITH DRIVE-CLIQ INTERFACE (ENCODER AM-22-DQ) CONNECTOR ROTATABLE PLAIN SHAFT, W/O HOLDING BRAKE; ACC. TOLERANCE N VIBRATION SEVERITY GRADE A, DEGREE OF PROTECTION IP 65

1FT7064-1AF71-1NG1-Z SIEMENS SIMOTICS S SYNCHRONOUS MOTOR 1FT7, M0=9NM (100K) NN=3000RPM, PN=2.39KW NATURALLY COOLED; POWER CONNECTOR ROTATABLE; VIBRATION SEVERITY A DEGREE OF PROTECTION IP65 FRAME SIZE IMB 5 (IM V1, IM V3) CONVENTIONAL FLANGE (1FT6/1FK7 COMPATIBLE), WITH KTY TEMPERATURE SENSOR INCREM. ENCODER SIN/COS 1VSS 2048 S/R (ENCODER I-2048) CONNECTOR ROTATABLE PLAIN SHAFT, W/O HOLDING BRAKE; ACCURACY TOLERANCE N

1FT7084-5AF71-1MB1 SIEMENS SIMOTICS S SYNCHRONOUS MOTOR 1FT7, M0=20NM (100K) NN=3000RPM, PN=4.55KW NATURALLY COOLED FRAME SIZE IMB 5 (IM V1, IM V3) CONVENTIONAL FLANGE (1FT6/1FK7 COMPATIBLE), WITH KTY TEMPERATURE SENSOR POWER CONNECTOR ROTATABLE ABSOLUTE ENCODER ENDAT 2048 S/R (ENCODER A-2048) CONNECTOR ROTATABLE SHAFT WITH FITTED KEY; WITH HOLDING BRAKE; ACC. TOLERANCE N VIBRATION SEVERITY GRADE A, DEGREE OF PROTECTION IP 65

1FT7105-5SF71-1CH0 SIEMENS SIMOTICS S SYNCHRONOUS MOTOR 1FT7, M0=65NM (100K) NN=3000RPM, PN=15.10KW FORCED VENTILATION FRAME SIZE IMB 5 (IM V1, IM V3) CONVENTIONAL FLANGE (1FT6/1FK7 COMPATIBLE) POWER CONNECTOR OUTGOING CONNECTOR DIRECTIONTRAVERSE RIGHT ABSOLUTE ENCODER 24 BITS + 12 BIT MULTITURN WITH DRIVE-CLIQ INTERFACE (ENCODER AM24DQI) PLAIN SHAFT, WITH HOLDING BRAKE; ACCURACY TOLERANCE N VIBRATION SEVERITY GRADE A, DEGREE OF PROTECTION IP 64

1FT7062-5WK74-1NK2 SIEMENS SIMOTICS S SYNCHRONOUS MOTOR 1FT7, M0=10NM (100K) NN=6000RPM, PN=5.80KW WATER-COOLED FRAME SIZE IMB 5 (IM V1, IM V3) CONVENTIONAL FLANGE (1FT6/1FK7 COMPATIBLE), WITH PT1000 TEMPERATURE SENSOR POWER CONNECTOR ROTATABLE INCREM. ENCODER SIN/COS 1VSS 2048 S/R (ENCODER I-2048) CONNECTOR ROTATABLE PLAIN SHAFT, W/O HOLDING BRAKE; ACC. TOLERANCE R VIBRATION SEVERITY GRADE A, DEGREE OF PROTECTION IP 67

1FT7046-5AF70-1CG1 SIEMENS SIMOTICS S SYNCHRONOUS MOTOR 1FT7, M0=7NM (100K) NN=3000RPM, PN=1.76KW NATURALLY COOLED FRAME SIZE IMB 5 (IM V1, IM V3) RECESSED FLANGE (MORE COMPACT) POWER CONNECTOR ROTATABLE ABSOLUTE ENCODER 24 BITS + 12 BIT MULTITURN WITH DRIVE-CLIQ INTERFACE (ENCODER AM24DQI) PLAIN SHAFT, W/O HOLDING BRAKE; ACC. TOLERANCE N VIBRATION SEVERITY GRADE A, DEGREE OF PROTECTION IP 65

1FT7086-5SF70-1FH1 SIEMENS SIMOTICS S SYNCHRONOUS MOTOR 1FT7, M0=36NM (100K) NN=3000RPM, PN=9.10KW FORCED VENTILATION FRAME SIZE IMB 5 (IM V1, IM V3) RECESSED FLANGE (MORE COMPACT) POWER CONNECTOR ROTATABLE PLAIN SHAFT, WITH HOLDING BRAKE; ACCURACY TOLERANCE N VIBRATION SEVERITY GRADE A, DEGREE OF PROTECTION IP 65

1FT7062-5AK71-1CG2-Z SIEMENS SIMOTICS S SYNCHRONOUS MOTOR 1FT7, M0=6NM (100K) NN=6000RPM, PN=2.13KW NATURALLY COOLED FRAME SIZE IMB 5 (IM V1, IM V3) CONVENTIONAL FLANGE (1FT6/1FK7 COMPATIBLE) POWER CONNECTOR ROTATABLE ABSOLUTE ENCODER 24 BITS + 12 BIT MULTITURN WITH DRIVE-CLIQ INTERFACE (ENCODER AM24DQI) PLAIN SHAFT, W/O HOLDING BRAKE; ACC. TOLERANCE N VIBRATION SEVERITY GRADE A, DEGREE OF PROTECTION IP 67

1FT7084-5AC71-1CB1 SIEMENS SIMOTICS S SYNCHRONOUS MOTOR 1FT7, M0=20NM (100K) NN=2000RPM, PN=3.54KW NATURALLY COOLED FRAME SIZE IMB 5 (IM V1, IM V3) CONVENTIONAL FLANGE (1FT6/1FK7 COMPATIBLE) POWER CONNECTOR ROTATABLE ABSOLUTE ENCODER 24 BITS + 12 BIT MULTITURN WITH DRIVE-CLIQ INTERFACE (ENCODER AM24DQI) SHAFT WITH FITTED KEY; WITH HOLDING BRAKE; ACC. TOLERANCE N VIBRATION SEVERITY GRADE A, DEGREE OF PROTECTION IP 65

1FT7062-5WF70-1DG1 SIEMENS SIMOTICS S SYNCHRONOUS MOTOR 1FT7, M0=10NM (100K) NN=3000RPM, PN=3.10KW WATER-COOLED FRAME SIZE IMB 5 (IM V1, IM V3) RECESSED FLANGE (MORE COMPACT) POWER CONNECTOR ROTATABLE INCREMENTAL ENCODER 2048 S/R WITH DRIVE-CLIQ INTERFACE (ENCODER I-2048) CONNECTOR ROTATABLE PLAIN SHAFT, W/O HOLDING BRAKE; ACC. TOLERANCE N VIBRATION SEVERITY GRADE A, DEGREE OF PROTECTION IP 65

1FT7105-5AF71-1MH1 SIEMENS SIMOTICS S SYNCHRONOUS MOTOR 1FT7, M0=50NM (100K) NN=3000RPM, PN=8.80KW NATURALLY COOLED FRAME SIZE IMB 5 (IM V1, IM V3) CONVENTIONAL FLANGE (1FT6/1FK7 COMPATIBLE), WITH KTY TEMPERATURE SENSOR POWER CONNECTOR ROTATABLE ABSOLUTE ENCODER ENDAT 2048 S/R (ENCODER A-2048) CONNECTOR ROTATABLE PLAIN SHAFT, WITH HOLDING BRAKE; ACCURACY TOLERANCE N VIBRATION SEVERITY GRADE A, DEGREE OF PROTECTION IP 65
