Sistemi di misura rotativi e ang

ROD 456.0000-00512 ID.-NR. 251292-AF HEIDENHAIN INCREMENTAL ROTARY ENCODER

ROC 425-2048 ID.-NR. 1350876-20 HEIDENHAIN ABSOLUTE ROTARY ENCODER (SINGLETURN) WITH INTEGRAL BEARING FOR SEPARATE SHAFT COUPLING, POSITIONS PER REVOLUTION 33554432, LINE COUNT 2048, OUTPUT SIGNAL ~1VPP, SHAFT SOLID SHAFT, DIAMETER 10 MM, LENGTH 20 MM, ELECTRICAL CONNECTION FLANGE SOCKET M23, MALE, 17-PIN, CONNECTING DIRECTION RADIAL

ECI 1319-32 ID.-NR. 811811-02 HEIDENHAIN ABSOLUTE MODULAR ROTARY ENCODER (SINGLETURN) WITH INDUCTIVE SCANNING WITHOUT INTEGRAL BEARING DATA INTERFACE ENDAT01 OUTPUT CODE BINARY LINE COUNT 32 OUTPUT SIGNAL: ~1VPP  ELECTRICAL CONNECTION PLUG CONNECTOR, STRAIGHT, DOUBLE-ROW, 12-PIN, WITH LOCKING MECHANISM AND WALLS CONNECTING DIRECTION CABLE OUTLET FOR AXIAL AND RADIAL USE

ROD 1421-250 ID.-NR. 222545-10 HEIDENHAIN INCREMENTAL ROTARY ENCODER LINE COUNT 250

ROD 320-05000 ID.-NR. 209698-09 HEIDENHAIN INCREMENTAL ROTARY ENCODER LINE COUNT 5000

ROD 429-1500 ID.-NR. 514777-98 HEIDENHAIN INCREMENTAL ROTARY ENCODER WITH INTEGRAL BEARING FOR SEPARATE SHAFT COUPLING LINE COUNT 1500, OUTPUT SIGNAL TTL, SHAFT SOLID SHAFT, DIAMETER 10 MM, LENGTH 20 MM, ELECTRICAL CONNECTION FLANGE SOCKET M23, MALE, 12-PIN WITH POLARIZING PIN, CONNECTING DIRECTION RADIAL

RCN 2311 ID.-NR. 1244635-01 HEIDENHAIN ABSOLUTE ANGLE ENCODER (SINGLETURN) WITH INTEGRAL BEARING AND INTEGRATED STATOR COUPLING, SYSTEM ACCURACY ±4.0'', POSITIONS PER REVOLUTION 67108864, SHAFT HOLLOW SHAFT, DIAMETER 20 MM, ELECTRICAL CONNECTION FLANGE SOCKET ULTRA-LOCK, MALE, 12-PIN

ROD 780C.0003-18000 ID.-NR. 309863-01 HEIDENHAIN INCREMENTAL ANGLE ENCODER, LINES 18000, ACCURACY GRADES +/- 2 SEC., OUTPUT SIGNALS 1VPP, ELECTR. CONNECTION CABLE 1 M WITH COUPLING CAN BE USED AXIAL OR RADIALLY

ROQ 424-512-03S17-E0 ID.-NR. 1353118-35 HEIDENHAIN ABSOLUTE ROTARY ENCODER (MULTITURN) WITH INTEGRAL BEARING FOR SEPARATE SHAFT COUPLING, DIFFERENTIABLE REVOLUTIONS 4096, POSITIONS PER REVOLUTION 4096, DATA INTERFACE SSI41R1, OUTPUT CODE GRAY, POWER SUPPLY 4.75 V ... 30 V, FLANGE VERSION CLAMPING FLANGE 36 MM, BOLT CIRCLE Ø 48 MM, 3 X M4 SHAFT: SOLID  HAFT, DIAMETER 10 MM, LENGTH 20 MM, OUTPUT SIGNAL ~1VPP, ELECTRICAL CONNECTION COUPLING M23, MALE, 17-PIN, CONNECTING DIRECTION CABLE OUTLET FOR AXIAL AND RADIAL USE, CABLE LENGTH 5.00 M

RON 275-18000 ID.-NR. 263638-04 HEIDENHAIN INCREMENTAL ANGLE ENCODER WITH INTEGRAL BEARING AND INTEGRATED STATOR COUPLING LINE COUNT: 18000

RON 285-18000 ID.-NR. 358699-24 HEIDENHAIN INCREMENTAL ANGLE ENCODER WITH INTEGRAL BEARING AND INTEGRATED STATOR COUPLING, LINE COUNT 18000, SYSTEM ACCURACY ±5.0'', OUTPUT SIGNAL ~1VPP, REFERENCE MARK ANALOG, SHAFT HOLLOW THROUGH SHAFT FOR AXIAL CLAMPING, DIAMETER 20 MM, ELECTRICAL CONNECTION COUPLING M23, MALE, 12-PIN, CONNECTING DIRECTION CABLE OUTLET FOR AXIAL AND RADIAL USE, CABLE LENGTH 5.00 M

ROQ 425-512 ID.-NR. 345214-02 HEIDENHAIN MULTITURN ROTARY ENCODERS

ERN 480-3600 ID.-NR. 385480-19 HEIDENHAIN INCREMENTAL ROTARY ENCODER WITH INTEGRAL BEARING FOR MOUNTING BY STATOR COUPLING, LINE COUNT 3600, OUTPUT SIGNAL ~1VPP, ELECTRICAL CONNECTION FREE CABLE END, CONNECTING DIRECTION CABLE OUTLET FOR AXIAL AND RADIAL USE, CABLE LENGTH 1.00 M

RON 285-18000 ID.-NR. 358699-09 HEIDENHAIN INCREMENTAL ANGLE ENCODER WITH INTEGRAL BEARING AND INTEGRATED STATOR COUPLING, LINE COUNT 18000, SYSTEM ACCURACY ±5.0'', OUTPUT SIGNAL ~1VPP, REFERENCE MARK ANALOG, SHAFT HOLLOW THROUGH SHAFT FOR AXIAL CLAMPING, DIAMETER 20 MM, ELECTRICAL CONNECTION FREE CABLE END, CONNECTING DIRECTION CABLE OUTLET FOR AXIAL AND RADIAL USE, CABLE LENGTH 3.00 M

ROD 1080-2000 ID.-NR. 534904-97 HEIDENHAIN INCREMENTAL ROTARY ENCODER WITH INTEGRAL BEARING FOR SEPARATE SHAFT COUPLING, LINE COUNT 2000, OUTPUT SIGNAL ~1VPP, SHAFT SOLID SHAFT, DIAMETER 4 MM, LENGTH 12.5 MM, ELECTRICAL CONNECTION FREE CABLE END, CONNECTING DIRECTION CABLE OUTLET FOR AXIAL AND RADIAL USE, CABLE LENGTH 1.00 M

ECN 413-512 ID.-NR. 586646-03 HEIDENHAIN ROTARY ENCODER WITH INTEGRAL BEARING, POSITIONS PER REVOLUTION 8192, DATA INTERFACE ENDAT01, LINE COUNT 512, OUTPUT SIGNAL ~1VPP, SHAFT BLIND HOLLOW SHAFT WITH CLAMPING RING, DIAMETER 12 MM, DEPTH 24 MM, ELECTRICAL CONNECTION FLANGE SOCKET M23, MALE, 17-PIN, CONNECTING DIRECTION RADIAL

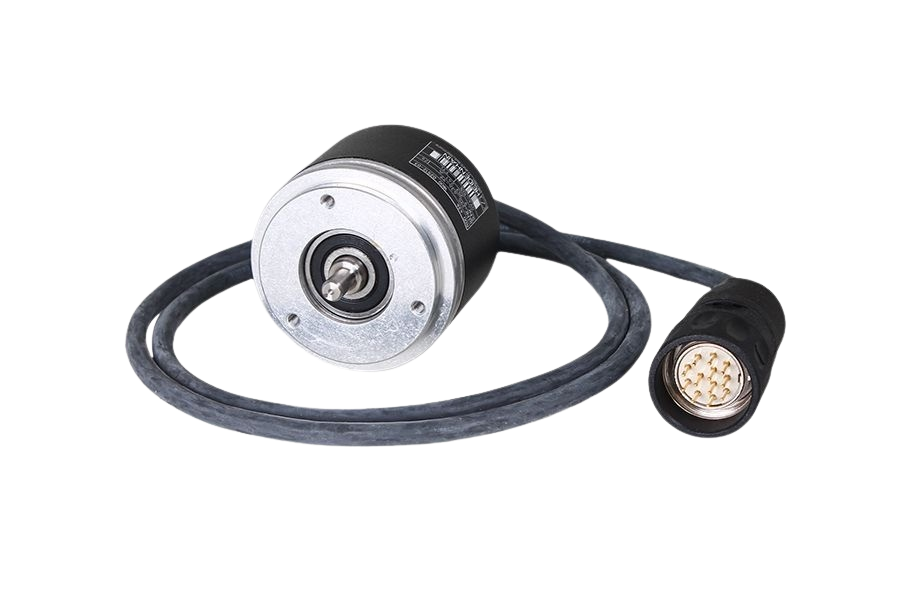

ROD 426-1800 ID.-NR. 244563-1M HEIDENHAIN INCREMENTAL ROTARY ENCODER, LINE COUNT 1800

ROD 426-1800 ID.-NR. 250587-1M HEIDENHAIN INCREMENTAL ROTARY ENCODER, OUTPUT SIGNALS WITH TTL LEVELS, 5V POWER SUPPLY, SYNCHER-FLANGE, SHAFT DIAMETER 6MM, PROTECTION TO IP64, SCANNING F LENGTH 1,00M, OPERATING TEMPERATURE RANGE 0 TO 70 DEG. C, 1800 LINES

EQN 437F-2048 ID.-NR. 1081301-04 HEIDENHAIN ROTARY ENCODER WITH INTEGRAL BEARING DIFFERENTIABLE REVOLUTIONS 4096, POSITIONS PER REVOLUTION 33554432, DATA INTERFACE FANUC06, LINE COUNT 2048, SHAFT BLIND HOLLOW SHAFT WITH CLAMPING RING, DIAMETER 12 MM, DEPTH 24 MM, ELECTRICAL CONNECTION FLANGE SOCKET M12, MALE, 8-PIN, CONNECTING DIRECTION RADIAL

ROQ 425-512 ID.-NR. 1109257-04 HEIDENHAIN ABSOLUTE ROTARY ENCODER (MULTITURN) WITH INTEGRAL BEARING FOR SEPARATE SHAFT COUPLING DIFFERENTIABLE REVOLUTIONS 4096, POSITIONS PER REVOLUTION 8192, LINE COUNT 512, OUTPUT SIGNAL ~1VPP, SHAFT SOLID SHAFT, DIAMETER 10  MM, LENGTH 20 MM, ELECTRICAL CONNECTION FLANGE SOCKET M23, MALE, 17-PIN, CONNECTING DIRECTION RADIAL

ROD 431-1024 ID.-NR. 309288-01 HEIDENHAIN INCREMENTAL ROTARY ENCODER, LINE COUNT 1024

RON 255-9000 ID.-NR. 331705-06 HEIDENHAIN INCREMENTAL ANGLE ENCODER WITH HOLLOW SHAFT AND INTEGRATED COUPLING, OUTPUT SIGNALS SINUSOIDAL (11UASS), REFERENCE MARK ONE, HOLLOW SHAFT DIA. 20MM, ACCURACY GRADE +/-7", ELECTRICAL CONNECTION CABLE 1M WITH CONNECT. CAN BE USED AXIAL OR RADI., LINE COUNT 9000

ROC 413-512 ID.-NR. 586625-01 HEIDENHAIN ABSOLUTE ROTARY ENCODER (SINGLETURN) WITH INTEGRAL BEARING FOR SEPARATE SHAFT COUPLING, POSITIONS PER REVOLUTION 8192, LINE COUNT 512, OUTPUT SIGNAL ~1VPP, ELECTRICAL CONNECTION FLANGE SOCKET M23, MALE, 17-PIN, CONNECTING DIRECTION RADIAL

ROC 2310-16384 ID.-NR. 1110410-01 HEIDENHAIN ABSOLUTE ANGLE ENCODER (SINGLETURN) WITH INTEGRAL BEARING FOR SEPARATE SHAFT COUPLING, SYSTEM ACCURACY ± 5.0'', DATA INTERFACE ENDAT22, POSITIONS PER REVOLUTION 67108864, CABLE LENGTH 1.00 M, ELECTRICAL CONNECTION COUPLING M12, MALE, 8-PIN, CONNECTING DIRECTION CABLE OUTLET FOR AXIAL AND RADIAL USE

EQN 425-512 ID.-NR. 1132407-32 HEIDENHAIN ROTARY ENCODER WITH INTEGRAL BEARING, DIFFERENTIABLE REVOLUTIONS 4096, POSITIONS PER REVOLUTION 8192, DATA INTERFACE SSI07R1, OUTPUT CODE GRAY, LINE COUNT 512, COUPLING VERSION TORQUE SUPPORT, METAL CLAMP WITH 4 MOUNTING HOLES, SHAFT BLIND HOLLOW SHAFT WITH CLAMPING RING, DIAMETER 12 MM, DEPTH 24 MM, ELECTRICAL CONNECTION COUPLING WITH CENTRAL FASTENING, FLANGE AND VIBRATIONS O-RING, M23-SPEEDTEC, MALE, 12-PIN, CONNECTING DIRECTION CABLE OUTLET FOR AXIAL AND RADIAL USE, CABLE LENGTH 0.60 M

EQN 1325-2048 ID.-NR. 586650-01 HEIDENHAIN ROTARY ENCODER WITH INTEGRAL BEARING DIFFERENTIABLE REVOLUTIONS 4096, POSITIONS PER REVOLUTION 8192, LINE COUNT 2048, OUTPUT SIGNAL ~1VPP, SHAFT  TAPERED SHAFT 1:10, FUNCTIONAL DIAMETER 9.25 MM, BACK-OFF THREAD M10 AND M6, ELECTRICAL CONNECTION PLUG CONNECTOR, STRAIGHT, DOUBLE-ROW, 12-PIN, WITH LOCKING MECHANISM AND  WALLS, CONNECTING DIRECTION CABLE OUTLET FOR AXIAL AND RADIAL USE

RON 255-18000 ID.-NR. 263635-52 HEIDENHAIN INCREMENTAL ANGLE ENCODER

ERN 420-5000 ID.-NR. 385420-54 HEIDENHAIN INCREMENTAL ROTARY ENCODER WITH INTEGRAL BEARING FOR MOUNTING BY STATOR COUPLING LINE COUNT 5000 OUTPUT SIGNAL TTL ELECTRICAL CONNECTION FLANGE SOCKET M23, MALE, 12-PIN CONNECTING DIRECTION RADIAL

ROD 450-1024 ID.-NR. 376850-82 HEIDENHAIN INCREMENTAL ROTARY ENCODER WITH INTEGRAL BEARING FOR SEPARATE SHAFT COUPLING, LINE COUNT 1024, OUTPUT SIGNAL ~11µAPP, FLANGE VERSION CLAMPING FLANGE 36 MM, BOLT CIRCLE Ø 48 MM, 3 X M3 SHAFT: SOLID SHAFT, DIAMETER 10 MM, LENGTH 20 MM, ELECTRICAL CONNECTION CONNECTOR M23, MALE, 9-PIN, CONNECTING DIRECTION CABLE OUTLET FOR AXIAL AND RADIAL USE, CABLE LENGTH 1.00 M

ROD 880-36000 ID.-NR. 383601-08 HEIDENHAIN INCREMENTAL ANGLE ENCODER WITH INTEGRAL BEARING FOR SEPARATE SHAFT COUPLING, LINE COUNT 36000, SYSTEM ACCURACY ±1.0'', OUTPUT SIGNAL ~1VPP, REFERENCE MARK ANALOG, FLANGE VERSION FLANGE WITH 170 MM OUTSIDE DIAMETER AND 140 MM CENTERING COLLAR, ALUMINUM, SHAFT SOLID SHAFT, DIAMETER 14 MM, LENGTH 20 MM, WITH INTERNAL THREAD M6, DEPTH 16 MM, ELECTRICAL CONNECTION COUPLING M23, MALE, 12-PIN, CONNECTING DIRECTION CABLE OUTLET FOR AXIAL AND RADIAL USE, CABLE LENGTH 3.00 M

ERN 180-5000 ID.-NR. 589614-0M HEIDENHAIN INCREMENTAL ROTARY ENCODER WITH INTEGRAL BEARING FOR MOUNTING BY STATOR COUPLING LINE COUNT 5000, OUTPUT SIGNAL ~1VPP, ELECTRICAL CONNECTION COUPLING M23, MALE, 12-PIN CABLE LENGTH 1.00 M

ROC 417-2048 ID.-NR. 638726-02 HEIDENHAIN ABSOLUTE ROTARY ENCODER (SINGLETURN) WITH INTEGRAL BEARING FOR SEPARATE SHAFT COUPLING, SYSTEM ACCURACY 10.0 '', POSITIONS PER REVOLUTION 131072, OUTPUT CODE BINARY, LINE COUNT 2048, OUTPUT SIGNAL ~1VPP, SHAFT SOLID SHAFT, DIAMETER 10 MM, LENGTH 20 MM, ELECTRICAL CONNECTION FLANGE SOCKET M23, MALE, 17-PIN, CONNECTING DIRECTION AXIAL

ROC 417-8192 ID.-NR. 325427-02 HEIDENHAIN ABSOLUTE ROTARY ENCODER, RESOLUTION 17BIT=131072POS./REVOLUTION, POWER SUPPLY +5 V, OUTPUT CODE PURE BINARY, MOUNTING SYNCHRO FLANGE, SHAFT DIAMETER LONG: 10 MM/19,5MM, DATA INTERFACE SYNCHRON SERIELL ENDAT INTERFACE, OUTPUT SIGNALS SINUSOIDAL VOLTAGE (1 VPP), SIGNAL PERIODS 8192, ROTATION INCREASING VALUES WITH CW ROTATION, ELECTRICAL CONNECT. FLANGE SOCKET AXIAL

RON 886C-36000 ID.-NR. 355886-10 HEIDENHAIN INCREMENTAL ANGLE ENCODER WITH INTEGRAL BEARING AND INTEGRATED STATOR COUPLING LINE COUNT 36000 OUTPUT SIGNAL SINUSOIDAL VOLTAGE SIGNALS (1 VPP) REFERENCE MARK ANALOG, REF. MARK CODED, NOMINAL INCREMENT 1000 ELECTRICAL CONNECTION COUPLING M23, MALE, 12-PIN CONNECTING DIRECTION CABLE OUTLET FOR AXIAL AND RADIAL USE CABLE LENGTH 5.00 M

ROD 486-1000 ID.-NR. 376886-0Z HEIDENHAIN INCREMENTAL ROTARY ENCODER WITH INTEGRAL BEARING FOR SEPARATE SHAFT COUPLING, LINE COUNT 1000, OUTPUT SIGNAL ~1VPP, ELECTRICAL CONNECTION COUPLING M23, MALE, 12-PIN, CONNECTING DIRECTION CABLE OUTLET FOR AXIAL AND RADIAL USE, CABLE LENGTH 1.00 M

ERN 180-5000 ID.-NR. 589614-0Z HEIDENHAIN INCREMENTAL ROTARY ENCODER WITH INTEGRAL BEARING FOR MOUNTING BY STATOR COUPLING, LINE COUNT 5000, OUTPUT SIGNAL ~1VPP, SHAFT HOLLOW THROUGH SHAFT WITH ECCENTRIC CLAMPING, DIAMETER 20 MM, ELECTRICAL CONNECTION COUPLING M23, MALE, 12-PIN, CONNECTING DIRECTION CABLE OUTLET FOR AXIAL AND RADIAL USE, CABLE LENGTH 1.00

ROD 426-3600 ID.-NR. 209342-7C HEIDENHAIN INCREMENTAL ROTARY ENCODER, LINE COUNT 3600

ROQ 3025-2048 ID.-NR. 1088739-03 HEIDENHAIN ABSOLUTE ROTARY ENCODER (MULTITURN) WITH INTEGRAL  BEARING FOR SEPARATE SHAFT COUPLING DIFFERENTIABLE REVOLUTIONS 4096, POSITIONS PER REVOLUTION 8192, LINE COUNT 2048, OUTPUT SIGNAL ~1VPP, SHAFT SOLID SHAFT WITH ROTOR  COUPLING HALF, DIAMETER 24.8MM, ELECTRICAL CONNECTION ANGLE FLANGE SOCKET, M23 SPEEDTEC, BLUE CHROMATED, BOLT CIRCLE DIAMETER 32 MM, W/O VIBRATION O-RING, MALE, 17-PIN, CONNECTING DIRECTION RADIAL

ERN 180-2500 ID.-NR. 377104-4L HEIDENHAIN INCREMENTAL ROTARY ENCODER WITH INTEGRAL BEARING FOR MOUNTING BY STATOR COUPLING, LINE COUNT 2500, OUTPUT SIGNAL ~1VPP, ELECTRICAL CONNECTION FREE CABLE END, CONNECTING DIRECTION CABLE OUTLET FOR AXIAL AND RADIAL USE, CABLE LENGTH 1.00 M

EQN 425-2048 ID.-NR. 539384-01 HEIDENHAIN ROTARY ENCODER WITH INTEGRAL BEARING, DIFFERENTIABLE REVOLUTIONS 4096, POSITIONS PER REVOLUTION 8192, DATA INTERFACE ENDAT01 SYNCHRONOUS SERIAL ENDAT 2.1 WITH INCREMENTAL SIGNALS, MODE COMMANDS, ENDAT 2.1 OR 2.2 COMMAND SET, OUTPUT CODE DUAL, LINE COUNT 2048, OUTPUT SIGNAL ~1VPP, SHAFT BLIND HOLLOW SHAFT WITH CLAMPING RING, DIAMETER 12 MM, DEPTH 24 MM, ELECTRICAL CONNECTION FLANGE SOCKET, MALE, 17-PIN, CONNECTING DIRECTION RADIAL

ROD 486-5000 ID.-NR. 376886-3W HEIDENHAIN INCREMENTAL ROTARY ENCODER WITH INTEGRAL BEARING FOR SEPARATE SHAFT COUPLING, LINE COUNT 5000, OUTPUT SIGNAL ~1VPP, ELECTRICAL CONNECTION COUPLING M23, MALE, 12-PIN, CONNECTING DIRECTION CABLE OUTLET FOR AXIAL AND RADIAL USE, CABLE LENGTH 5.00 M

ROD 426-4096 ID.-NR. 376846-0W HEIDENHAIN INCREMENTAL ROTARY ENCODER WITH INTEGRAL BEARING FOR SEPARATE SHAFT COUPLING LINE COUNT: 4096, OUTPUT SIGNAL: TTL, CONNECTING DIRECTION: CABLE OUTLET FOR AXIAL AND RADIAL USE CABLE LENGTH: 1.00 M

RCN 8591F ID.-NR. 1244745-01 HEIDENHAIN ABSOLUTE ANGLE ENCODER (SINGLETURN) WITH INTEGRAL BEARING AND INTEGRATED STATOR COUPLING DATA INTERFACE FANUC05 SHAFT HOLLOW SHAFT, DIAMETER 60 MM ELECTRICAL CONNECTION FLANGE SOCKET ULTRA-LOCK, MALE, 12-PIN

ROD 420-500 ID.-NR. 227662-7P HEIDENHAIN INCREMENTAL ROTARY ENCODER, LINE COUNT 500

ROD 420-800 ID.-NR. 295281-71 HEIDENHAIN INCREMENTAL ROTARY ENCODER, OUTPUT SIGNALS SQUAREWAVE; TTL, MOUNTING MODE CLAMPING FLANGE, SHAFT DIAMETER 10MM, ELECTRICAL CONNECTION CABLE 1 M WITHOUT CONNEC. CABLE OUTPUT RADIAL, LINES 800

ROD 436-1024 ID.-NR. 295450-17 HEIDENHAIN INCREMENTAL ROTARY ENCODER, OUTPUT SIGNALS SQUAREWAVE; HTL-PEGEL, MOUNTING MODE SYNCHROFLANGE, SHAFT DIAMETER 6 MM, ELECTRICAL CONNECTION CABLE 1 M WITHOUT CONNEC. CABLE OUTLET AXIAL, LINES 1024

ERN 1331-1024 ID.-NR. 317393-02 HEIDENHAIN INCREMENTAL ROTARY ENCODER LINE COUNT 1024

ROD 456-3600 ID.-NR. 376856-7R HEIDENHAIN INCREMENTAL ROTARY ENCODER WITH INTEGRAL BEARING FOR SEPARATE SHAFT COUPLING, LINE COUNT 3600, OUTPUT SIGNAL ~11µAPP, SHAFT: SOLID SHAFT, DIAMETER 6 MM, LENGTH 9.5 MM, ELECTRICAL CONNECTION FREE CABLE END, CONNECTING DIRECTION CABLE OUTLET FOR AXIAL AND RADIAL USE, CABLE LENGTH 3.00 M

ROD 456-3600 ID.-NR. 376856-7R HEIDENHAIN INCREMENTAL ROTARY ENCODER WITH INTEGRAL BEARING FOR SEPARATE SHAFT COUPLING, LINE COUNT 3600, OUTPUT SIGNAL ~11µAPP, SHAFT: SOLID SHAFT, DIAMETER 6 MM, LENGTH 9.5 MM, ELECTRICAL CONNECTION FREE CABLE END, CONNECTING DIRECTION CABLE OUTLET FOR AXIAL AND RADIAL USE, CABLE LENGTH 3.00 M

ROD 450.0000-01000 ID.-NR. 251568-78 HEIDENHAIN INCREMENTAL ROTARY ENCODER, LINE COUNT 1000
