Simatic

6AV6671-8XB10-0AX1 SIEMENS SIMATIC HMI MEMORY CARD 512 MB SECURE DIGITAL CARD FOR MP 177, MP 277, MP 377, MOBILE PANEL 277, FROM WINCC FLEXIBLE 2008 SP1 FOR OP 77, TP/OP 177, TP/OP 277, MOBILE PANEL 177 AND ALL HMI PANELS WITH SD/MMC SLOT

6ES7511-1FK00-0AB0 SIEMENS SIMATIC S7-1500F, CPU 1511F-1 PN, CENTRAL PROCESSING UNIT WITH WORKING MEMORY 225 KB FOR PROGRAM AND 1 MB FOR DATA, 1. INTERFACE, PROFINET IRT WITH 2 PORT SWITCH, 60 NS BIT-PERFORMANCE, SIMATIC MEMORY CARD NECESSARY

6ES7521-1BH00-0AB0 SIEMENS SIMATIC S7-1500, DIGITAL INPUT MODULE DI16 X DC24V, 16 CHANNELS IN GROUPS OF 16; INPUT DELAY 0.05 ... 20MS; INPUT TYPE 3 (IEC 61131); DIAGNOSIS, PROCESSALARMS

6ES7522-1BH00-0AB0 SIEMENS SIMATIC S7-1500, DIGITAL OUTPUT MODULE DQ 16 X 24VDC/0.5A; 16 CHANNELS IN GROUPS OF 8, 4 A PER GROUP; DIAGNOSIS; SUBSTITUTE VALUE

6ES7531-7KF00-0AB0 SIEMENS SIMATIC S7-1500, ANALOG INPUT MODULE AI 8 X U/I/RTD/TC, 16 BITS OF RESOLUTION, ACCURACY 0.3 %; 8 CHANNELS IN GROUPS OF 8; 4 CHANNNELS FOR RTD MEASURING, COMMON MODE VOLTAGE APPR. 10 V; DIAGNOSIS, PROCESSALARMS INCL. INFEED ELEMENT, SHIELD CLAMP AND SHIELD TERMINAL

6ES7532-5HD00-0AB0 SIEMENS SIMATIC S7-1500, ANALOG OUTPUT MODULE AQ 4 X U/I ST; 16 BITS OF RESOLUTION, ACCURACY 0.3 %; 4 CHANNELS IN GROUPS OF 4; DIAGNOSIS, SUBSTITUTE VALUE INCL. INFEED ELEMENT, SHIELD CLAMP AND SHIELD TERMINAL

6ES7592-1AM00-0XB0 SIEMENS SIMATIC S7-1500, FRONTCONNECTOR SCREW-TYPE, 40PIN, FOR 35MM WIDE MODULES, INCL. 4 JUMPERS, AND CABLE STRAP

6ES7590-1AE80-0AA0 SIEMENS SIMATIC S7-1500, MOUNTING RAIL 482 MM (APPR. 19 INCH) INCL. GROUNDING ELEMENT, INTEGRATED DIN RAIL FOR MOUNTING OF SMALL COMPONENTS SUCH AS CLAMPS, FUSES OR RELAYS

6ES7317-6FF04-0AB0 SIEMENS SIMATIC S7-300, CPU 317F-2DP, CENTRAL PROCESSING UNIT WITH 1.5 MBYTE WORKING MEMORY, 1. INTERFACE MPI/DP 12MBIT/S, 2. INTERFACE DP-MASTER/SLAVE, MICRO MEMORY CARD NECESSARY FOR USE WITH SOFTWARE OPTION S7 DISTRIBUTED SAFETY V5.2 SP1 AND HIGHER

6ES7193-4FL00-0AA0 SIEMENS SIMATIC DP, ADDITIONAL TERM. FOR ET 200S AND ET 200S COMPACT 32PT IN 3 WIRE CLAMP-TYPE TERMINAL USE 2 ADDITIONAL TERMINALS FOR 4-WIRE

6ES7135-4FB01-0AB0 SIEMENS SIMATIC DP, ELECTRONIC MODULE FOR ET 200S, 2 AO U, 15 MM WIDTH, +/-10 V; 13 BIT + SIGN, 1..5V; 12BIT, CYCLE TIME < 1 MS WITH LED SF (GROUP FAULT)

6ES7153-2BA82-0XB0 SIEMENS SIMATIC DP, INTERFACE DP/PA-LINK A. ET200M IM153-2 HF FOR EXPANDED TEMPERATURE RANGE FOR MAX. 12 S7-300 MODULES, WITH REDUNDANCY, TIME STAMPING FIT FOR ISOCHRONE MODE NEW FEATURES: UP TO 12 MODULES CAN BE USED SLAVE INITIATIVE FOR DRIVE ES AND SWITCH ES EXTENDED DATA FOR HART SECON- DARY VARIABLES OPERATON W. 64-CHANNEL MODULES 32 SIGNALS / SLOT

6ES5241-3DA12 SIEMENS SIMATIC S5 IP 241 USW ULTRASONIC POSITION DECODER MODULE

6ES7341-1CH02-0AE0 SIEMENS SIMATIC S7-300, CP341 COMMUNICATION PROCESSOR WITH RS422/485 INTERFACE INCL. CONFIG.

6ES7643-0BA10-0AX0 SIEMENS SIMATIC PC RI25, INDUSTRIE PC 19"-RACK-IPC, PENTIUM 133 MHZ 8 MB RAM (2X4MB FPM), 3,5" FDD, 1,6 GB EIDE-HDD, MS-DOS 6.22 SVGA-GRAFIK CIRRUS GD7543 AM PCI-BUS MIT 1MB RAM, 1024X768 PIXEL,256 FARBEN,75HZ SCHNITTSTELLEN COM1/2, LPT1,VGA MPI, PS/2 TASTATUR, PS/2 MOUSE 115/220 VAC, 220VA SV 6 ISA / 2 PCI SLOTS FREI 1X3,5" UND 1X5,25/3,5" FREIE EINBAUPLAETZE.FRONT IP41 BENUTZERANLEITUNG DE/EN/FR/IT

6GK7242-5DX30-0XE0 SIEMENS COMMUNICATION MODULE CM 1242-5; FOR CONNECTION OF SIMATIC S7-1200 TO PROFIBUS AS DP SLAVE MODULE

6GK1415-2BA10 SIEMENS SIMATIC NET, DP/AS-INTERFACE LINK ADVANCED; GATEWAY PROFIBUS DP/AS-INTERFACE WITH MASTER PROFILE M3, M4 ACC. TO EXTENDED AS-I SPEC. V3.0 FOR INTEGRATION IN PROFIBUS DP; SINGLE MASTER WITH DISPLAY; DEGREE OF PROTECTION IP20.

6ES7138-4DA04-0AB0 SIEMENS SIMATIC DP, ELECTRONIC MODULE F. ET 200S, 1 COUNT 24V/100KHZ 15 MM WIDE, OPERATION MODES: COUNT, MEASURE, (PERIOD DURATION MEASUREMENT HIGH RESOLUTION) WITH CLOCK CYCLIC SYNCHRON.APP

6ES7716-2BA10-0EA4 SIEMENS SIMATIC FIELD PG M4 PREMIUM PLUS, CORE I7-35X0M (4M CACHE, 2,9GHZ, UP TO 3.6 GHZ WITH TURBO-BOOST-TECHNOLOGY), DVD RW OPTICAL DRIVE, HD-GRAPHIC 4000; 1 TB HDD SATA; W/O S5-INTERFACE, W/O S5-EPROMMER; 15,6'' DISPLAY, FULL HD (1920 X 1080); KEYBOARD QWERTY (& GERMAN)

6ES7318-3EL01-0AB0 SIEMENS SIMATIC S7-300 CPU 319-3 PN/DP, CENTRAL PROCESSING UNIT WITH 2 MBYTE WORKING MEMORY, 1. INTERFACE MPI/DP 12MBIT/S, 2. INTERFACE DP-MASTER/SLAVE, 3. INTERFACE ETHERNET PROFINET, WITH 2 PORT SWITCH, MICRO MEMORY CARD NECESSARY

6ES7143-3BH00-0XA0 SIEMENS SIMATIC DP, BASIC MODULE BM143 ET 200ECO: 8DI/8DO, 2A; 8 X M12,DOUBLE-ASSIGNEMENT, DEGREE OF PROTECTION IP65/67; CONNECTING BLOCK 6ES7194-3AA00-0.A0 MUST BE ORDERED SEPARTELY

6GK1411-2AB10 SIEMENS SIMATIC NET, IE/AS-INTERFACE LINK PN IO; GATEWAY INDUSTRIAL ETHERNET/ AS-INTERFACE WITH MASTER PROFILE M3, M4 ACC. TO EXTENDED AS-I SPEC. V3.0 FOR INTEGRATION IN PROFINET IO; SINGLE MASTER WITH DISPLAY; DEGREE OF PROTECTION IP20.

6ES7954-8LL02-0AA0 SIEMENS SIMATIC S7, MEMORY CARD FOR S7-1X00 CPU, 3,3 V FLASH, 256 MBYTE

6ES7716-0AA10-0BA4 SIEMENS SIMATIC FIELD PG M4 STANDARD CORE 1020E (2M CACHE, 2,20GHZ) DVD RW OPTICAL DRIVE, HD-GRAPHIC ; 320 GB HDD SATA; W/O S5-INTERFACE, W/O S5-EPROMMER; 15,6'' DISPLAY, FULL HD (1920 X 1080); KEYBOARD QWERTY (& GERMAN)

6ES7212-1BD30-0XB0 SIEMENS SIMATIC S7-1200, CPU 1212C, COMPACT CPU, AC/DC/RLY, ONBOARD I/O: 8 DI 24V DC; 6 DO RELAY 2A; 2 AI 0 - 10V DC, POWER SUPPLY: AC 85 - 264 V AC AT 47 - 63 HZ, PROGRAM/DATA MEMORY: 25 KB

6ES7212-1BE40-0XB0 SIEMENS SIMATIC S7-1200, CPU 1212C, COMPACT CPU, AC/DC/RLY, ONBOARD I/O: 8 DI 24V DC; 6 DO RELAY 2A; 2 AI 0 - 10V DC, POWER SUPPLY: AC 85 - 264 V AC AT 47 - 63 HZ, PROGRAM/DATA MEMORY: 75 KB

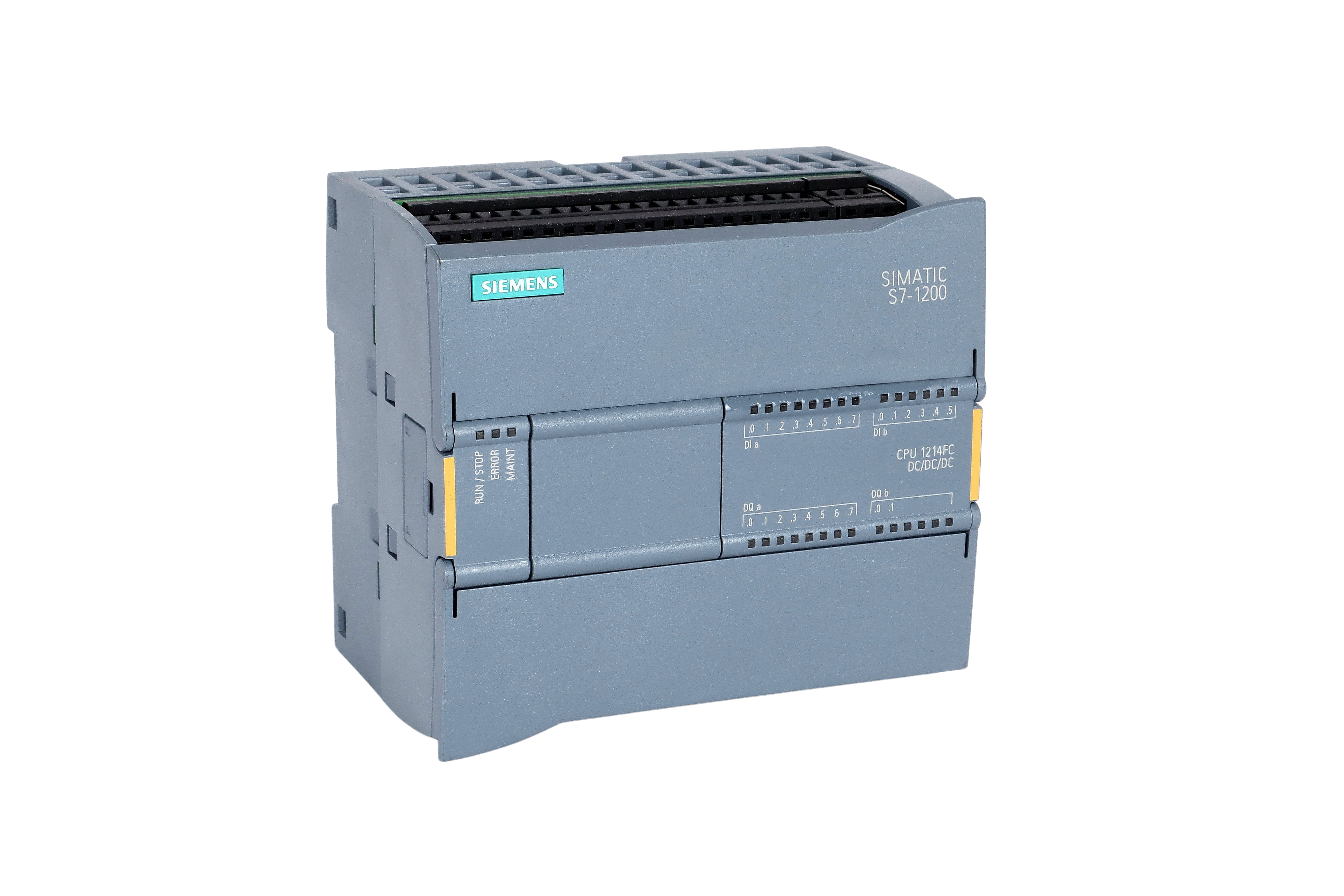

6ES7214-1AF40-0XB0 SIEMENS SIMATIC S7-1200F, CPU 1214 FC, COMPACT CPU, DC/DC/DC, ONBOARD I/O: 14 DI 24V DC; 10 DO 24 V DC; 2 AI 0 - 10V DC, POWER SUPPLY: DC 20.4 - 28.8 V DC, PROGRAM/DATA MEMORY 125 KB

6ES7136-6PA00-0BC0 SIEMENS SIMATIC DP, POWER M. F-PM-E PPM PROFISAFE, FOR ET 200SP; 24V DC FAIL-SAFE SWITCHING OF DQ AND F-DQ UP TO PL D / SIL2 OR PL E / SIL3 2 FAIL-SAFE DIGITAL INPUTS 1 FAIL-SAFE DIGITAL OUTPUT PPM

6ES7193-6BP00-0BA0 SIEMENS SIMATIC ET 200SP, BASEUNIT BU15-P16+A0+2B, BU-TYPE A0, PUSH-IN TERMINALS, W/O AUX-TERMINALS, BRIDGED TO LEFT BU WXH: 15MMX117MM

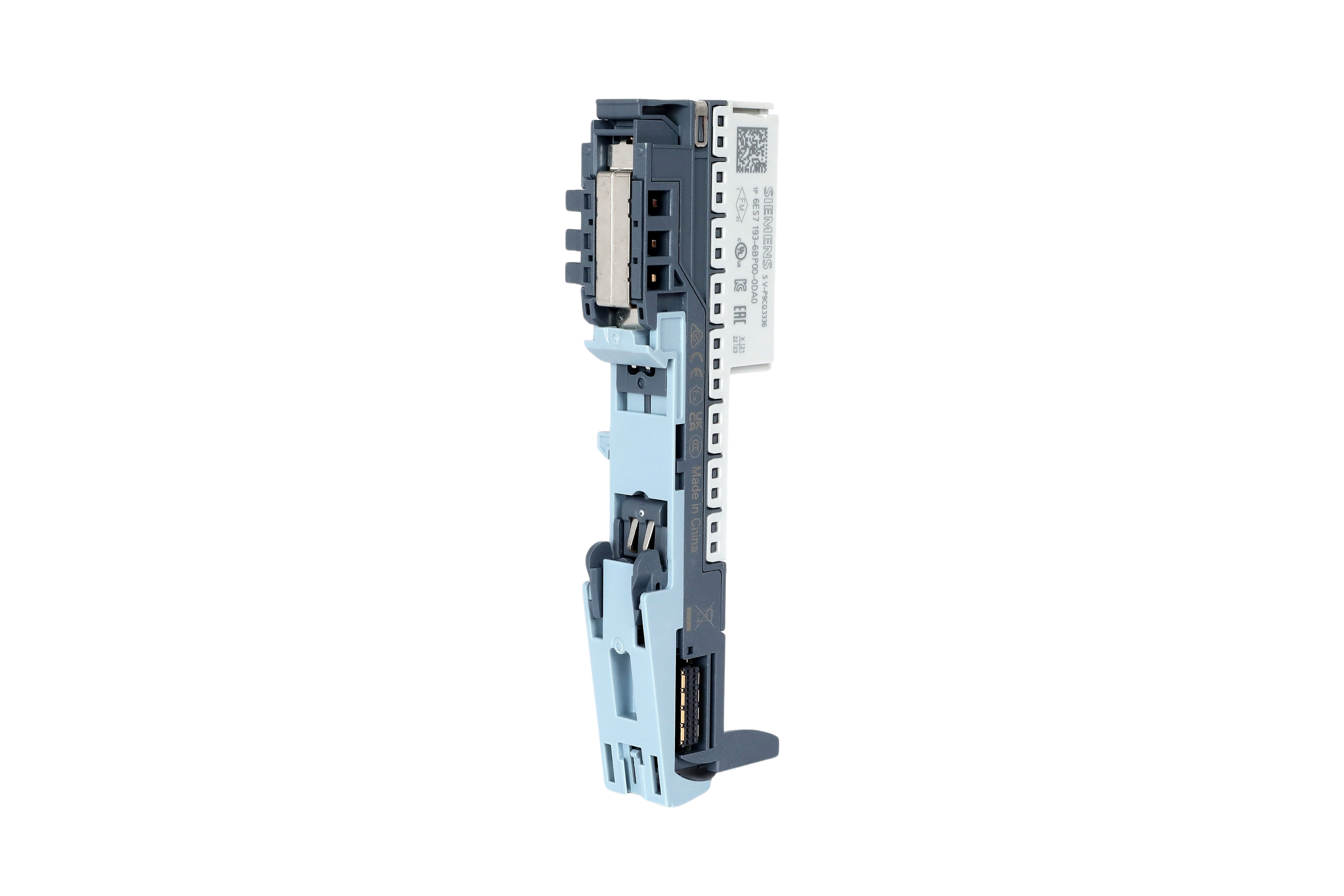

6ES7193-6BP00-0DA0 SIEMENS SIMATIC ET 200SP, BASEUNIT BU15-P16+A0+2D, BU-TYPE A0, PUSH-IN TERMINALS, W/O AUX-TERMINALS

6ES7136-6RA00-0BF0 SIEMENS SIMATIC DP, ELECTRON. MODULE FOR ET200SP, F-RQ 1X24VDC/24..230VAC/5A ST, 20MM WIDTH, 1 RELAY OUTPUT (2 NO-CONTACTS) TOTAL OUTPUT CURRENT 5A, RATED VOLTAGE DC 24V AND AC 24 .. 230V

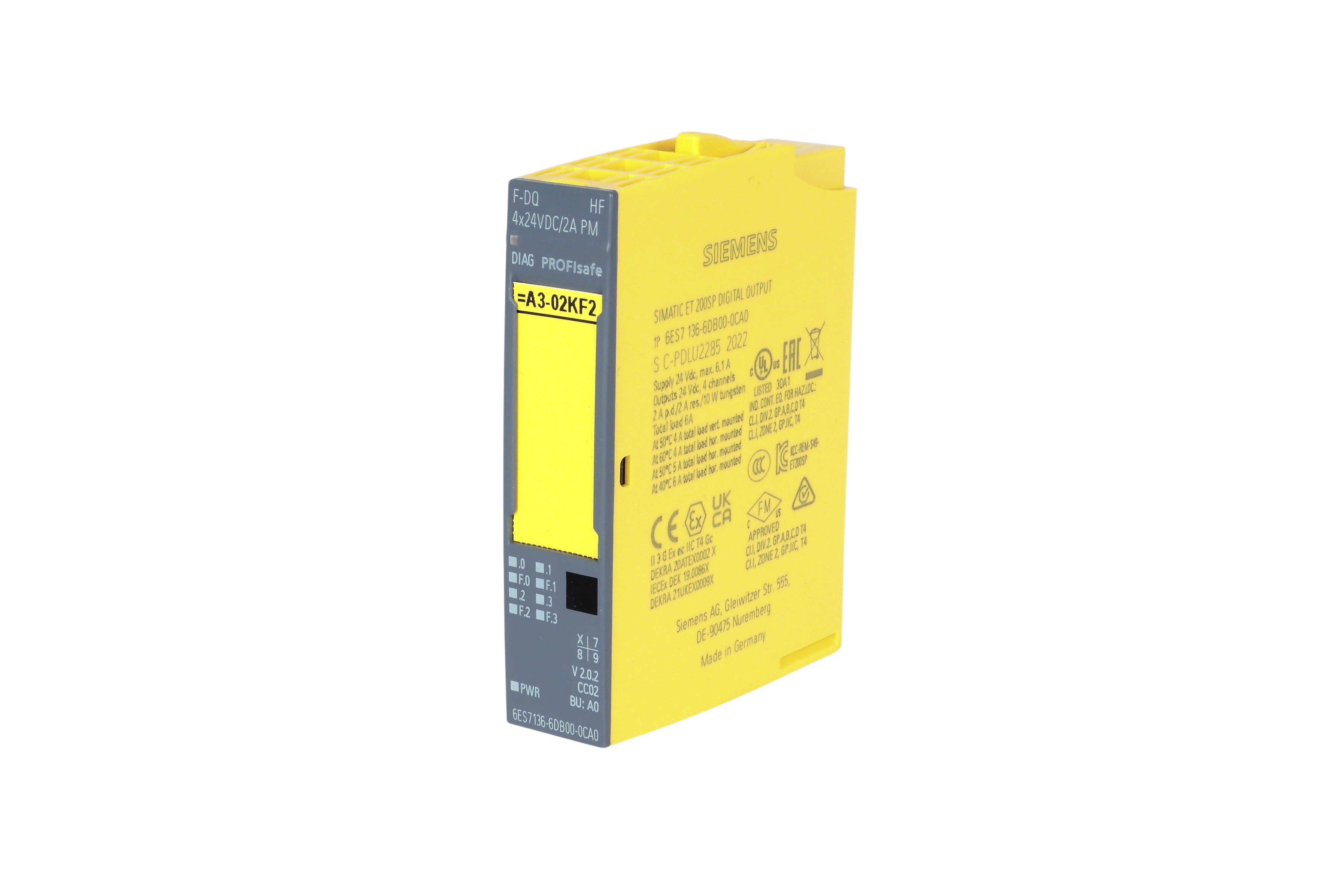

6ES7136-6DB00-0CA0 SIEMENS SIMATIC DP, ELECTRON. MODULE F. ET 200SP, F-DQ 4XDC 24V/2A, 15 MM WIDTH, UP TO PL E (ISO 13849) UP TO SIL 3 (IEC 61508)

6ES7136-6BA00-0CA0 SIEMENS SIMATIC DP, ELECTRON. MODULE F. ET 200SP, F-DI 8X24VDC HF, 15 MM WIDTH, UP TO PL E (ISO 13849-1)/ SIL3 (IEC 61508)

6GK5201-3BH00-2BA3 SIEMENS SCALANCE X201-3PIRT MANAGED IE IRT SWITCH, 1 X 10/100MBIT/S RJ45 PORTS, 3 X 100MBIT/S POF SC RJ PORTS, FAULT SIGNAL CONTACT WITH SET BUTTON, REDUNDANT POWER SUPPLY, PROFINET-IO DEVICE, NETWORK MANAGEMENT, RED.- MANAGER INTEGRATED, INCL. ELECTRON. MANUAL ON CD, C-PLUG OPTIONAL

6ES7151-1CA00-3BL0 SIEMENS ET 200S COMPACT, 16DI/16DO STD DC24V, 3MS; DC24V, 0.5A EXPANDABLE WITH UP TO 12 ET 200S MODULES (NO F-MODULES) ELECTRONICBLOCK

6ES7214-1HG31-0XB0 SIEMENS SIMATIC S7-1200, CPU 1214C, COMPACT CPU, DC/DC/RELAY, ONBOARD I/O: 14 DI 24V DC; 10 DO RELAY 2A; 2 AI 0 - 10V DC, POWER SUPPLY: AC 20.4 - 28.8 V DC, PROGRAM/DATA MEMORY: 75 KB

6ES7231-5QD32-0XB0 SIEMENS SIMATIC S7-1200, ANALOG INPUT, SM 1231 TC, 4 AI THERMOCOUPLE

6ES7222-1BH32-0XB0 SIEMENS SIMATIC S7-1200, DIGITAL OUTPUT SM 1222, 16 DO, 24V DC, TRANSISTOR 0.5A

6ES7222-1HF32-0XB0 SIEMENS SIMATIC S7-1200, DIGITAL OUTPUT SM 1222, 8 DO, RELAY 2A

6ES7221-1BH32-0XB0 SIEMENS SIMATIC S7-1200, DIGITAL INPUT SM 1221, 16 DI, 24VDC, SINK/SOURCE INPUT

6ES7232-4HD32-0XB0 SIEMENS SIMATIC S7-1200, ANALOG OUTPUT, SM 1232, 4 AO, +/-10V, 14 BIT RESOLUTION, OR 0 - 20 MA/4 - 20 MA, 13 BIT RESOLUTION

6ES7132-6BF00-0CA0 SIEMENS SIMATIC ET 200SP, DIGITAL OUTPUT MODULE, DQ 8X24VDC/0,5A HIGH FEATURE FITS TO BU-TYPE A0, COLOR CODE CC02, CHANNEL DIAGNOSIS

6ES7131-6BF00-0CA0 SIEMENS SIMATIC ET 200SP, DIGITAL INPUT MODULE, DI 8X 24VDC HIGH FEATURE FITS TO BU-TYPE A0, COLOR CODE CC01, CHANNEL DIAGNOSIS

6ES7132-6HD00-0BB0 SIEMENS SIMATIC ET 200SP, RELAY MODULE NORMALLY OPEN, RQ 4X120VDC..230VAC/5A STANDARD FITS TO BU-TYPE B0, COLOR CODE CC00, MODULE DIAGNOSIS

6ES7138-4GA50-0AB0 SIEMENS SIMATIC DP, ELEKTRONIC MODULE FOR ET 200S, 4SI IO-LINK, 4 POINT TO POINT INTERFACES, 15MM WIDE, IO-LINK MASTER

6ES7138-4CB11-0AB0 SIEMENS SIMATIC DP, POWER MODULE PM-E FOR ET200S, DC24-48V, AC24-230V, WITH DIAGNOSTICS AND BACKUP

6ES7151-3BA20-0AB0 SIEMENS SIMATIC DP, INTERFACE MODULE IM151-3 PROFINET HIGH FEATURE; FOR ET 200S TRANSMISS. RATE UP TO 100MBIT/S MAX. OF 63 PERIPHERAL MODULES UP TO 2M WIDTH CONNECTABLE; 2 X BUS INTERFACING VIA RJ45 INCL. TERMINATING MODULE

6ES7137-6BD00-0BA0 SIEMENS SIMATIC ET 200SP, CM 4 X IO-LINK ST COMMUNICATION MODULE IO-LINK MASTER V1.1

6ES7193-6BP20-0DA0 SIEMENS SIMATIC ET 200SP, BASEUNIT BU15-P16+A10+2D, BU-TYPE A0, PUSH-IN TERMINALS, WITH 10 AUX-TERMINALS, NEW LOADGROUP, WXH: 15MMX141MM

6ES7193-6BP20-0BB0 SIEMENS SIMATIC ET 200SP, BASEUNIT BU20-P12+A4+0B, BU-TYPE B0, PUSH-IN KLEMMEN, WITH 4 AUX-TERMINALS, BRIDGED TO LEFT BU WXH: 20MMX117MM
