1GF5136-0WE44-6HU7-Z SIEMENS DC MOTOR, IP 23 SEPARATE STANDARD FAN UNIT AXIALLY MOUNTED, 21.5 KW RATED SPEED 1550 REV/MIN IM V 1

1PM4105-2LW26-1AS1 SIEMENS AC-HSA HOLLOW-SHAFT MOTOR, DC LINK 600 V 11.0KW, 1500RPM, 70NM WATER-COOLED, IP65 SHAFT OUTLET IP55 TERMINAL BOX, SIGNAL CONNECTOR; METRIC CABLE GLAND HOLLOW SHAFT ENCODER SIN/COS 1VPP, 256 TEETH DESIGN IM B35, IM V15 IM V36) SMOOTH SHAFT, DRILLED HOLE: 11.5 MM ROTATION UNIT SCREWED PREPARED VIBRATION SEVERITY GRADE SR SHAFT AND FLANGE ACCURACY R TERMINAL BOX, TOP CABLE, RIGHT WITHOUT FAN STANDARD PAINT FINISH (RAL 7016)

1FE1147-8WN31-1BC2 SIEMENS SIMOTICS M BUILT-IN SYNCHRONOUS MOTOR DC LINK 600V, 105K, IP00, 8-POLE INDIVIDUAL COMPONENTS: ROTOR STATOR, 820NM, IN=200A, 103KW NN=1200RPM, NMAX=5500RPM VPM REQUIRED KTY84 TEMPERATURE SENSOR WATER-COOLED; OVERHEAD ENCAPSULATION +FULL PROTECTION (2X TEMP. SENSOR) STANDARD COOLING JACKET; ROTOR SLEEVE IDM=150 MM; FREE LEAD ENDS L=0.5 M

1FE1084-4WN11-1BA0 SIEMENS SIMOTICS M BUILT-IN SYNCHRONOUS MOTOR DC LINK 600V, 105K, IP00, 4-POLE INDIVIDUAL COMPONENTS: ROTOR STATOR, 84 NM, IN=105A, 38KW NN=4300RPM, NMAX=20000RPM VPM REQUIRED KTY84 TEMPERATURE SENSOR WATER-COOLED; OVERHEAD ENCAPSULATION WITH STANDARD PROTECTION 2X TEMP. SENSOR STANDARD COOLING JACKET; W/O ROTOR SLEEVE; FREE LEAD ENDS L=1.5M

1GG5202-0WD4.-6HU5 SIEMENS DC MOTOR, IP 23, SEPARATE FAN UNIT, RADIALLY MOUNTED, 60 KW RATED SPEED 1230 REV/MIN

1GG5182-0WD40-6HU5-Z SIEMENS DC MOTOR, IP 23, SEPARATE FAN UNIT, RADIALLY MOUNTED, 48.5 KW RATED SPEED 1390 REV/MIN IM B 3

1FW6090-8PB05-0FC2 SIEMENS SIMOTICS T STATOR EXTERNAL COOLING JACKET; AXIAL CABLE OUTLET; DIAMETER 230 MM; LENGTH 90MM; MAX. TORQUE 179NM; MAX. SPEED 140RPM; MAX. CURRENT 9.5A EFF; WHEN USING THE DIRECT MOTORS IN FORK HEADS FOR MACHINE TOOLS OR ROBOTS A LICENSE FOR THE US PATENT US5584621 AND THE CORRESPONDING WORLDWIDE PROPERTY RIGHTS MAY BE REQUIRED

1FW6090-8RA10-0AA0 SIEMENS SIMOTICS T ROTOR FOR MOTOR 1FW6090-0..10-....; DIAM. 230 MM; LENGTH 140 MM

1FE1042-6WR30-1BA0 SIEMENS SIMOTICS M BUILT-IN SYNCHRONOUS MOTOR DC LINK 600V, 105K, IP00, 6-POLE INDIVIDUAL COMPONENTS: ROTOR STATOR, 11NM, IN=19A, 11.5KW NN=10000RPM, NMAX=15000RPM KTY84 TEMPERATURE SENSOR WATER-COOLED; OVERHEAD ENCAPSULATION +FULL PROTECTION (2X TEMP. SENSOR) STANDARD COOLING JACKET W/O ROTOR SLEEVE; FREE LEAD ENDS L=1.5M

1GG6222-0NC40-6ZV1-Z SIEMENS DC MOTOR

1PL6184-4PD25-0FA3 SIEMENS SIMOTICS M COMPACT ASYNCHRONOUS MOTOR; IP23 OPERATION ON MASTERDRIVES VC/MC WITH EXTERNAL FAN WITH ATTACHED RESOLVER WITH DRIVE-CLIQ INTERFACE 65KW, 1150/MIN, 540NM (VC) TERMINAL BOX TOP, CABLE ENTRY FROM NDE DESIGN IM B 35, LIFTING CONCEPT FOR VERTICAL MOUNTING WITHOUT BRAKE CYLINDER ROLLER BEARING; VIBRATION SEVERITY GRADE R; SHAFT/FLANGE ACCURACY R FEATHER KEY AND HALF-KEY BALANCING DIRECTION OF AIR FLOW FROM DE TO NDE STANDARD PAINT FINISH COLOUR: RAL 7016

1FW6090-0QB05-0KG3 SIEMENS SIMOTICS T TORQUE MOTOR; COMPONENTS 3-PHASE SYNCHRONOUS MOTOR; EXTERNAL COOLING JACKET; RADIAL CABLE OUTLET; POWER CABLE 2 M WITH CONNECTOR SZ. 1; SIGNAL CABLE 2 M WITH M17 CONNECTOR; DIAM. 230 MM; LENGTH 90 MM; MAX. TORQUE 179 NM; MAX. SPEED 250 RPM; MAX. CURRENT 13 A EFF; WITH PTC130 AND PT1000 TEMPERATURE SENSOR

1FW6130-0PB05-0KD3 SIEMENS SIMOTICS T TORQUE MOTOR; COMPONENTS 3-PHASE SYNCHRONOUS MOTOR; EXTERNAL COOLING JACKET; AXIAL CABLE OUTLET; POWER CABLE 0.5 M WITH CONNECTOR SIZE 1; SIGNAL CABLE 0.5 M WITH M17 CONNECTOR; DIAM. 310 MM; LENGTH 90 MM; MAX. TORQUE 439 NM; MAX. SPEED 130 RPM; MAX. CURRENT 18 A EFF; WITH PTC130 AND PT1000 TEMPERATURE SENSOR

1GG5116-0WH49-6HU7-Z SIEMENS DC MOTOR

1GG5116-0WH40-6HU7 SIEMENS DC MOTOR, IP 23, SEPARATE FAN UNIT, RADIALLY MOUNTED, 12 KW RATED SPEED 2300 REV/MIN IM B 3

1FL6064-1AC61-2LH1 SIEMENS SIMOTICS S-1FL6-1FL6 OPERATING VOLTAGE 3AC 400 V PN=1.5 KW; NN=2000 RPM M0=8 NM; MN=7.16 NM SHAFT HEIGHT 65 MM, WITH ANGLE PLUG; ABSOLUTE ENCODER 20-BITS (12-BIT MULTI-TURN) PLAIN SHAFT, TOLERANCE N WITH HOLDING BRAKE DEGREE OF PROTECTION IP65 WITH SEALING RING COMPATIBLE WITH THE CONVERTERS SINAMICS V70 & V90

1GG5164-0WF46-6HU7-Z SIEMENS DC MOTOR, IP 23, SEPARATE FAN UNIT, RADIALLY MOUNTED, 28.5 KW RATED SPEED 1300 REV/MIN IM B 35

1FE1147-8WS11-1BC2 SIEMENS SIMOTICS M BUILT-IN SYNCHRONOUS MOTOR DC LINK 600 V, 105K, IP00, 8-POLE INDIVIDUAL COMPONENTS: ROTOR STATOR, 820 NM, IN=130 A, 64.4 KW NN=750 RPM, NMAX=3500 RPM VPM REQUIRED TEMPERATURE SENSOR KTY84 WATER-COOLED; OVERHEAD ENCAPSULATION WITH STANDARD PROTECTION 2X TEMP. SENSOR STANDARD COOLING JACKET; ROTOR SLEEVE IDM=150 MM; FREE LEAD ENDS L=0.5 M

1FE9042-6WT37-1AA9-Z SIEMENS SYNCHRON SPINDELMOTOR

G42X25 DUNKERMOTOREN SERVO MOTOR

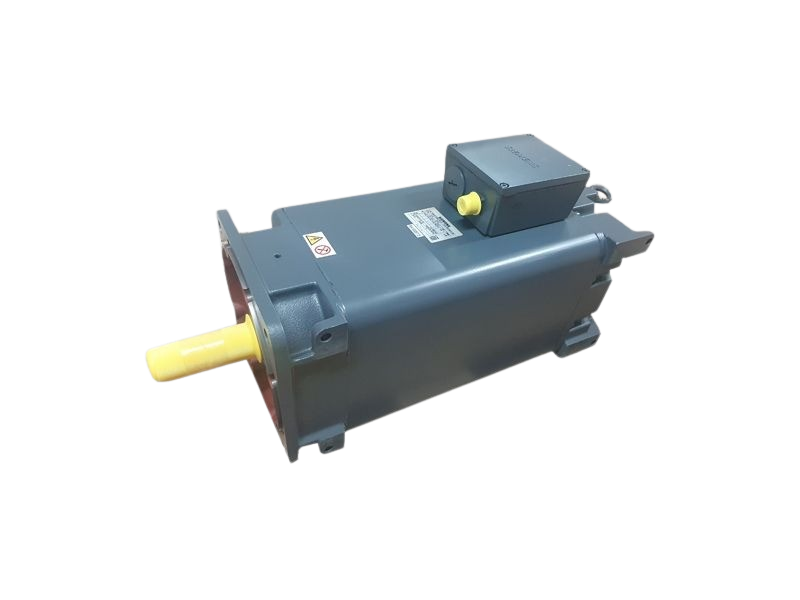

1PM6138-4GZ89-3AR1-Z SIEMENS AC MSD HOLLOW-SHAFT MOTOR

1GL5106-0WW40-6HU7-Z SIEMENS DC MOTOR

1GG5182-0ND40-6SU6 SIEMENS GLEICHSTROMMOTOR

1PM4107-2LZ26-1BS1-Z SIEMENS AC MSD HOLLOW-SHAFT MOTOR

1GG5112-0WU40-6HU7-Z SIEMENS DC MOTOR, IP 23, SEPARATE FAN UNIT, RADIALLY MOUNTED, 6.1 KW RATED SPEED 2050 REV/MIN IM B 3

1GF5136-0WX40-6HU7-Z SIEMENS DC MOTOR, IP 23 SEPARATE STANDARD FAN UNIT AXIALLY MOUNTED, 20 KW RATED SPEED 1450 REV/MIN IM B 3

1PA6101-4NF33-1KB3 SIEMENS COMPACT ASYNCHRON MOTOR FOR INVERTER OPER. FORCE COOLED 4 POLE;W. SC INVERT;W. ERN1381 4,3 KW, 1750 MIN-1, 24 NM, 460V 3,7 KW, 1500 MIN-1, 24 NM, 400V DEGREE OF PROTECTION IP55 TERMINAL BOX TOP CABLE ENTRY LEFT IM B 35 MOUNTING COLOUR : RAL 7016

1PM6105-2LF84-1CR1 SIEMENS AC-HSA HOLLOW-SHAFT MOTOR, DC LINK 600 V 7.5 KW, 1500 RPM, 48 NM FORCE-VENTILATED, IP55 SHAFT OUTLET IP55 STAR-DELTA (WYE-DELTA) CAN BE SELECTED TERMINAL BOX, SIGNAL CONNECTOR; METRIC CABLE GLAND HOLLOW SHAFT ENCODER SIN/COS 1VPP, 256 TEETH BAUFORM IM V1 SMOOTH SHAFT, DRILLED HOLE: 11.5 MM ROTATION UNIT SCREWED PREPARED VIBRATION SEVERITY GRADE SR SHAFT AND FLANGE ACCURACY R TERMINAL BOX TOP, CABLE NDE FAN AXIAL BLOW-OUT DIRECTION BOTTOM STANDARD PAINT FINISH (RAL 7016) NOTES
