signal cable

6FX8002-2CD24-1DF0 SIEMENS SIGNAL CABLE PRE-ASSEMBLED FOR INCREMENTAL ENCODER TTL RS422 24 V DC, 6FX2001-2 4X (2X0.34)+4X 0.5 C CONNECTOR FULL THREAD M23 MOTION-CONNECT 800PLUS TRAILABLE UL/CSA DESINA DMAX=9.3 MM LENGTH (M)= TYPE: 6FX8002-2CD24 LENGTH (M) = 0 + 30 + 5 + 0

6FX5002-2DC10-1DA0 SIEMENS SIGNAL CABLE PRE-ASSEMBLED TYPE: 6FX5002-2DC10 (SINAMICS DRIVE CLIQ) CONNECTOR IP20/IP67, WITH 24 V MOTION-CONNECT 500 LENGTH (M)= 0 + 30 + 0 + 0

6FX8002-2DC10-1FA0 SIEMENS SIGNAL CABLE PRE-ASSEMBLED TYPE: 6FX8002-2DC10 DRIVE-CLIQ WITH 24 V CONNECTOR RJ45 IP20 ON MODULE SIDE AND IP67 ON MOTOR SIDE MOTION-CONNECT 800PLUS RELEASED ONLY UP TO 75 M LENGTH DMAX=7.1 MM LENGTH (M)=50

6FX8002-2CA61-1BJ0 SIEMENS SIGNAL CABLE PRE-ASSEMBLED FOR 1PH ENCODER FOR 660 3X (2X0.14) C+4X 0.14+2X0.5 C CONNECTOR FULL THREAD M23 MOTION-CONNECT 800PLUS TRAILABLE, UL/CSA, DESINA DMAX=9.2 MM LENGTH (M)= TYPE: 6FX8002-2CA61 LENGTH (M) = + 0 + 10 + 8 + 0

6FX8002-5DN51-1BG0 SIEMENS POWER CABLE PRE-ASSEMBLED 4X 6+(2X1.5) C C SPEED-CONNECT CONNECTOR SZ. 1.5 FOR SINAMICS S120 MOTOR MODULE MOTION-CONNECT 800PLUS TRAILABLE, UL/CSA, DESINA DMAX=17.3 MM LÄNGE (M)= TYPE: 6FX8002-5DN51 LENGTH (M) = + 0 + 10 + 6 + 0

6FX8002-5DN31-1BA0 SIEMENS POWER CABLE PRE-ASSEMBLED 4X 2.5+(2X1.5) C C SPEED-CONNECT CONNECTOR SZ. 1.5 FOR SINAMICS S120 MOTOR MODULE BOOKSIZE MOTION-CONNECT 800PLUS TRAILABLE, UL/CSA, DESINA DMAX=13.8 MM LENGTH (M)= TYPE: 6FX8002-5DN31 LENGTH (M) = + 0 + 10 + 0 + 0

6FX8002-2AD00-1BD0 SIEMENS SIGNAL LINE PRE-ASSEMBLED FOR ENCODER ENDAT TO 611D/MCU 3X (2X0.14) C+4X 0.14+2X0.5 C PLUG FULL THREAD M23 MOTION-CONNECT 800PLUS TRAILABLE UL/CSA DESINA DMAX=9.2 MM LENGTH (M)= TYPE: 6FX8002-2AD00 LENGTH (M) = + 0 + 10 + 3 + 0

6FX2008-1BD51-1DF0 SINUMERIK/SIMODRIVE (ACCESSOR.) SIGNAL CABLE, TRAILING TYPE BRAIDED, D = 10.3 MM, 3 X 2 X 3X2X0.14+4X0.14+2X0.5+4X0.23 SQMM

6FX8002-2DC42-1AG0 SIEMENS SIGNAL CABLE PRE-ASSEMBLED TYPE: 6FX8002-2DC42 DRIVE-CLIQ WITH 24 V RJ45 IP67/M17 MALE SPEED-CONNECT-READY MOTION-CONNECT 800PLUS UL/CSA, DESINA, TRAILABLE DMAX=7.1 MM LENGTH (M)= 0 + 0 + 6 + 0

6FX8042-2CG00-1AH5 SIEMENS SIGNAL CABLE PRE-ASSEMBLED FOR INCREMENTAL ENCODER SIN/COS 1VPP, 6FX2001-3 4X (2X0.34)+4X 0.5 C CONNECTOR FULL THREAD M23 MOTION-CONNECT 800PLUS TRAILABLE UL/CSA DESINA DMAX=9.3 MM LENGTH (M)= TYPE: 6FX8042-2CG00 MOTOR SIDE: CRIMPED CONTACTS, CONNECTOR HOUSING INCLUDED LENGTH (M) = 0 + 0 + 7 + 0,5

6FX8002-2MK00-1BA0 SIEMENS SIGNAL CABLE PRE-ASSEMBLED TYPE: 6FX8002-2MK00 BASIC CABLE 6FX8002-2CA31-.... CUSTOMER-SPECIFIC MOTION-CONNECT 800 LENGTH (M)= 0 +10 +0 +0

6FX8002-2DD40-1AF0 SIEMENS SIGNAL CABLE PRE-ASSEMBLED TYPE: 6FX8002-2DD40 DRIVE-CLIQ WITH 24 V M17 FEMALE FULL THREAD/ RJ45 IP20 MOTION-CONNECT 800PLUS UL/CSA, DESINA, TRAILABLE DMAX=7.1 MM LENGTH (M)= 0 + 0 + 5 + 0

6FX8002-2DD40-1BC0 SIEMENS SIGNAL CABLE PRE-ASSEMBLED TYPE: 6FX8002-2DD40 DRIVE-CLIQ WITH 24 V M17 FEMALE FULL THREAD/ RJ45 IP20 MOTION-CONNECT 800PLUS UL/CSA, DESINA, TRAILABLE DMAX=7.1 MM LENGTH (M)= 0 + 10 + 2 + 0

6FX8002-2DC20-1AE5 SIEMENS SIGNAL CABLE PRE-ASSEMBLED TYPE: 6FX8002-2DC20 DRIVE-CLIQ WITH 24 V CONNECTOR RJ45 IP67 ON BOTH SIDES RELEASED ONLY UP TO 75 M LENGTH DMAX=7.1 MM LENGTH (M)= 0 + 0 + 4 + 0,5

6FX8002-2CH00-1AD0 SIEMENS SIGNAL CABLE PRE-ASSEMBLED FOR ABSOLUTE ENCODER ENDAT 6FX2001-5 3X (2X0.14) C+4X 0.14+2X0.5 C CONNECTOR FULL THREAD M23 MOTION-CONNECT 800PLUS TRAILABLE UL/CSA DESINA DMAX=9.2 MM LENGTH (M)= TYPE: 6FX8002-2CH00 LENGTH (M) = 0 + 0 + 3 + 0

6FX8002-2DD40-1BB0 SIEMENS SIGNAL CABLE PRE-ASSEMBLED TYPE: 6FX8002-2DD40 DRIVE-CLIQ WITH 24 V M17 FEMALE FULL THREAD/ RJ45 IP20 MOTION-CONNECT 800PLUS UL/CSA, DESINA, TRAILABLE DMAX=7.1 MM LENGTH (M)= 0 + 10 + 1 + 0

6FX8002-2EQ14-1BA0 SIEMENS SIGNAL CABLE EXTENSION FOR BASE 6FX8002-2EQ10-.... 3X (2X0.14) C+4X 0.14+2X0.5 +4X 0.22 C CONNECTOR FULL THREAD M23 MOTION-CONNECT 800PLUS TRAILABLE UL/CSA DESINA DMAX=9.8 MM LENGTH (M)= TYPE: 6FX8002-2EQ14 LENGTH (M) = 0 + 10 + 0 + 0

6FX8002-2CA34-1AH0 SIEMENS SIGNAL CABLE EXTENSION FOR BASE 2CA31-2CA80 OR -2CA88 3X (2X0.14) C + 4X 0.14+2X0.5+4X 0.22 C CONNECTOR FULL THREAD M23 MOTION-CONNECT 800PLUS TRAILABLE UL/CSA DESINA DMAX=9.8 MM LENGTH (M)= TYPE: 6FX8002-2CA34 LENGTH (M) = 0 + 0 + 7 + 0

6FX8002-2DD40-1BD0 SIEMENS SIGNAL CABLE PRE-ASSEMBLED TYPE: 6FX8002-2DD40 DRIVE-CLIQ WITH 24 V M17 FEMALE FULL THREAD/ RJ45 IP20 MOTION-CONNECT 800PLUS UL/CSA, DESINA, TRAILABLE DMAX=7.1 MM LENGTH (M)= 0 + 10 + 3 + 0

6FX8002-2DC42-1AE5 SIEMENS SIGNAL CABLE PRE-ASSEMBLED TYPE: 6FX8002-2DC42 DRIVE-CLIQ WITH 24 V RJ45 IP67/M17 MALE SPEED-CONNECT-READY MOTION-CONNECT 800PLUS UL/CSA, DESINA, TRAILABLE DMAX=7.1 MM LENGTH (M)= 0 + 0 + 4 + 0,5

6FX2002-1DC00-1AC4 SIEMENS SIGNAL CABLE PRE-ASSEMBLED TYPE: 6FX2002-1DC00 (SINAMICS DRIVE CLIQ) CONNECTOR IP20/IP20, WITHOUT 24 V LENGTH (M)= 0 + 0 + 2 + 0,4

6FX8002-2AD04-1AC0 SIEMENS SIGNAL CABLE PRE-ASSEMBLED FOR ABSOLUTE VALUE ENCODER SSI AND ENDAT 5V DC, ALSO EXTENSION FOR BASE 6FX8002-2AD00-XXXX 3X (2X0.14) C+4X 0.14+2X0.5 C CONNECTOR FULL THREAD M23 MOTION-CONNECT 800PLUS TRAILABLE UL/CSA DESINA DMAX=9.2 MM TYPE: 6FX8002-2AD04 LENGTH (M) = 0 + 0 + 2 + 0

6FX8002-2DC42-1AD0 SIEMENS SIGNAL CABLE PRE-ASSEMBLED TYPE: 6FX8002-2DC42 DRIVE-CLIQ WITH 24 V RJ45 IP67/M17 MALE SPEED-CONNECT-READY MOTION-CONNECT 800PLUS UL/CSA, DESINA, TRAILABLE DMAX=7.1 MM LENGTH (M)= 0 + 0 + 3 + 0

6FX2002-1VL00-1CA0 SIEMENS SIGNAL LINE PRE-ASSEMBLED (VIDEO LINK) LENGTH (M)=20 M

6FX8002-2AD00-1AC0 SIEMENS SIGNAL LINE PRE-ASSEMBLED FOR ENCODER ENDAT TO 611D/MCU 3X (2X0.14) C+4X 0.14+2X0.5 C PLUG FULL THREAD M23 MOTION-CONNECT 800PLUS TRAILABLE UL/CSA DESINA DMAX=9.2 MM LENGTH (M)= TYPE: 6FX8002-2AD00 LENGTH (M) = + 0 + 0 + 2 + 0

6FX8002-2EQ14-1AG5 SIEMENS SIGNAL CABLE EXTENSION FOR BASE 6FX8002-2EQ10-.... 3X (2X0.14) C+4X 0.14+2X0.5 +4X 0.22 C CONNECTOR FULL THREAD M23 MOTION-CONNECT 800PLUS TRAILABLE UL/CSA DESINA DMAX=9.8 MM LENGTH (M)= TYPE: 6FX8002-2EQ14 LENGTH (M) = 0 + 0 + 6 + 0,5

6FX8002-2EQ14-1AH5 SIEMENS SIGNAL CABLE EXTENSION FOR BASE 6FX8002-2EQ10-.... 3X (2X0.14) C+4X 0.14+2X0.5 +4X 0.22 C CONNECTOR FULL THREAD M23 MOTION-CONNECT 800PLUS TRAILABLE UL/CSA DESINA DMAX=9.8 MM LENGTH (M)= TYPE: 6FX8002-2EQ14 LENGTH (M) = 0 + 0 + 7 + 0,5

6FX8002-2EQ14-1AJ5 SIEMENS SIGNAL CABLE EXTENSION FOR BASE 6FX8002-2EQ10-.... 3X (2X0.14) C+4X 0.14+2X0.5 +4X 0.22 C CONNECTOR FULL THREAD M23 MOTION-CONNECT 800PLUS TRAILABLE UL/CSA DESINA DMAX=9.8 MM LENGTH (M)= TYPE: 6FX8002-2EQ14 LENGTH (M) = 0 + 0 + 8 + 0,5

6FX8002-2AD04-1BA5 SIEMENS SIGNAL CABLE PRE-ASSEMBLED FOR ABSOLUTE VALUE ENCODER SSI AND ENDAT 5V DC, ALSO EXTENSION FOR BASE 6FX8002-2AD00-XXXX 3X (2X0.14) C+4X 0.14+2X0.5 C CONNECTOR FULL THREAD M23 MOTION-CONNECT 800PLUS TRAILABLE UL/CSA DESINA DMAX=9.2 MM TYPE: 6FX8002-2AD04 LENGTH (M) = 0 + 10 + 0 + 0,5

6FX8002-2AD04-1AK5 SIEMENS SIGNAL CABLE PRE-ASSEMBLED FOR ABSOLUTE VALUE ENCODER SSI AND ENDAT 5V DC, ALSO EXTENSION FOR BASE 6FX8002-2AD00-XXXX 3X (2X0.14) C+4X 0.14+2X0.5 C CONNECTOR FULL THREAD M23 MOTION-CONNECT 800PLUS TRAILABLE UL/CSA DESINA DMAX=9.2 MM TYPE: 6FX8002-2AD04 LENGTH (M) = 0 + 0 + 9 + 0,5

6FX8002-2CH00-1DF0 SIEMENS SIGNAL CABLE PRE-ASSEMBLED FOR ABSOLUTE ENCODER ENDAT 6FX2001-5 3X (2X0.14) C+4X 0.14+2X0.5 C CONNECTOR FULL THREAD M23 MOTION-CONNECT 800PLUS TRAILABLE UL/CSA DESINA DMAX=9.2 MM LENGTH (M)= TYPE: 6FX8002-2CH00 LENGTH (M) = 0 + 30 + 5 + 0

6FX8002-2AD04-1AE0 SIEMENS SIGNAL CABLE PRE-ASSEMBLED FOR ABSOLUTE VALUE ENCODER SSI AND ENDAT 5V DC, ALSO EXTENSION FOR BASE 6FX8002-2AD00-XXXX 3X (2X0.14) C+4X 0.14+2X0.5 C CONNECTOR FULL THREAD M23 MOTION-CONNECT 800PLUS TRAILABLE UL/CSA DESINA DMAX=9.2 MM TYPE: 6FX8002-2AD04 LENGTH (M) = 0 + 0 + 4 + 0

6FX8002-2EQ14-1CF0 SIEMENS SIGNAL CABLE EXTENSION FOR BASE 6FX8002-2EQ10-.... 3X (2X0.14) C+4X 0.14+2X0.5 +4X 0.22 C CONNECTOR FULL THREAD M23 MOTION-CONNECT 800PLUS TRAILABLE UL/CSA DESINA DMAX=9.8 MM LENGTH (M)= TYPE: 6FX8002-2EQ14 LENGTH (M) = 0 + 20 + 5 + 0

6FX8002-2SL10-1AD0 SIEMENS SINGLE LINE DISPLACEMENT FOR TEMPERATURE SENSOR 3X 2X 0.5+1X 1 C M17 MALE VG ON M17 FEMALE VG MOTION-CONNECT 800PLUS UL/CSA, DESINA, TRAILABLE DMAX=11 MM TYPE OF DELIVERY: RING LENGTH (M)= 0 + 0 + 3 + 0

6FX8002-2DC38-1AF5 SIEMENS DRIVE-CLIQ ADAPTERLEITUNG KONFEKTIONIERT; LÄNGE (M)= 5,50

6FX8002-2CA31-1BE0 SIEMENS SIGNAL CABLE PRE-ASSEMBLED FOR INCR. ENCODER WITH C/D TRACKS INTEGRATED INTO THE MOTOR 3X (2X0.14) C+4X 0.14+2X0.5 +4X 0.22 C CONNECTOR FULL THREAD M23 MOTION-CONNECT 800PLUS TRAILABLE UL/CSA DESINA DMAX=9.8 MM LENGTH (M)= TYPE: 6FX8002-2CA31 LENGTH (M) = + 0 + 10 + 4 + 0

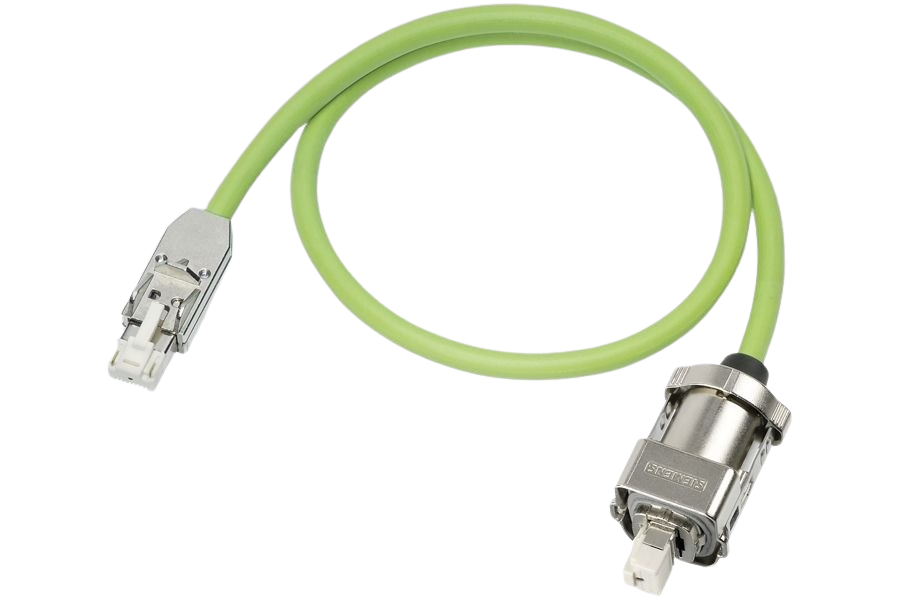

6FX8002-1AA51-1AB0 SIEMENS SIGNAL CABLE PRE-ASSEMBLED TYPE: 6FX8002-1AA51 CUSTOMER-SPECIFIC LENGTH (M)= 0 + 0 + 1 + 0

6FX8002-2CB31-1AE0 SIEMENS SIGNAL CABLE PRE-ASSEMBLED 1FT5 TG/RLG ON 611A 12X0.22 C MOTION-CONNECT 800PLUS TRAILABLE, UL/CSA, DESINA DMAX=7.3 MM LENGTH (M)= TYPE: 6FX8002-2CB31 LENGTH (M) = + 0 + 0 + 4 + 0

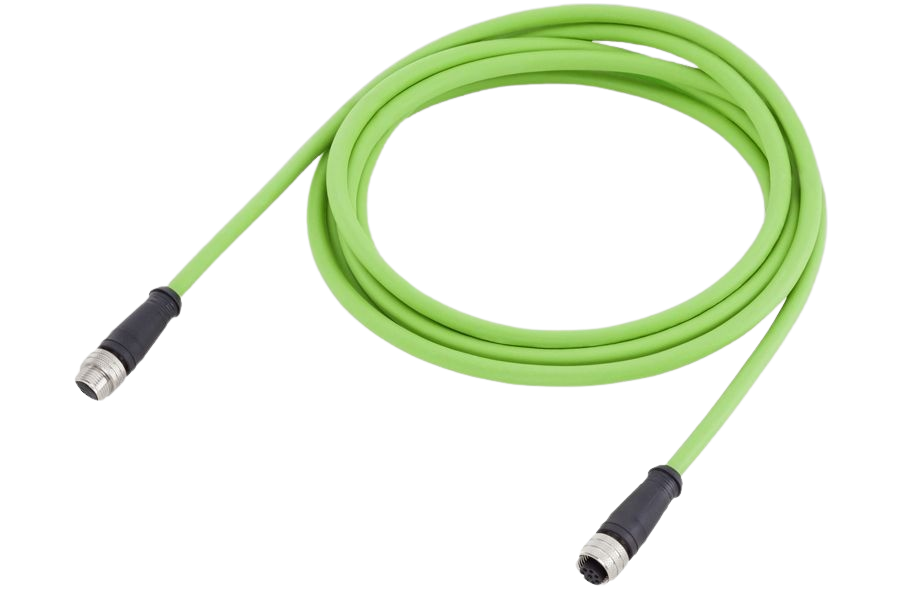

6FX8002-2DC34-1AG0 SIEMENS DRIVE-CLIQ EXTENSION FOR BASE 6FX8002-2DC30-.... WITH 24 V CONNECTOR AND MATING CONNECTOR M12, IP67 MOTION-CONNECT 800PLUS TRAILABLE, UL/CSA, DESINA DMAX=7.1 MM LENGTH (M)=6 + 0

6FX8002-1AA02-1AJ0 SIEMENS SIGNAL CABLE PRE-ASSEMBLED TYPE: 6FX8002-1AA02 (PC/PG V24) 8X (2X0.18) C (25-POL./25-POL.) MOTION-CONNECT 800PLUS TRAILABLE UL/CSA DESINA DMAX=8.2 MM LENGTH= 0 + 0 + 8 + 0

6FX8002-2SL10-1AE0 SIEMENS SINGLE LINE DISPLACEMENT TYPE: 6FX8002-2SL10 FOR TEMPERATURE SENSOR 3X 2X 0.5+1X 1 C M17 MALE VG ON M17 FEMALE VG MOTION-CONNECT 800PLUS UL/CSA, DESINA, TRAILABLE DMAX=11 MM TYPE OF DELIVERY: RING LENGTH (M)= 0 + 0 + 4 + 0

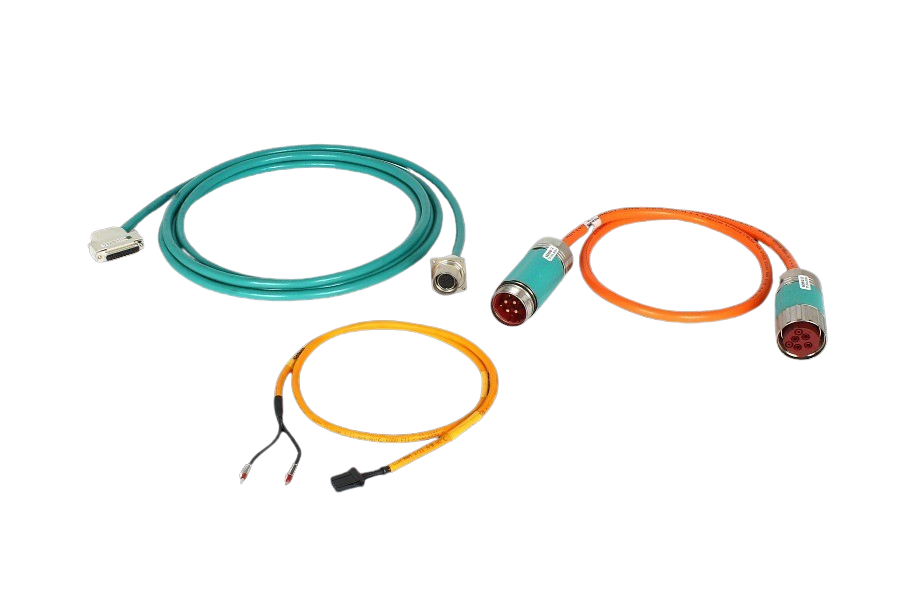

6FX8002-2DC42-1AH7 SIEMENS SIGNAL CABLE PRE-ASSEMBLED TYPE: 6FX8002-2DC42 DRIVE-CLIQ WITH 24 V RJ45 IP67/M17 MALE SPEED-CONNECT-READY MOTION-CONNECT 800PLUS UL/CSA, DESINA, TRAILABLE DMAX=7.1 MM LENGTH (M)= 0 + 0 + 7 + 0,7

6FX2002-2EQ00-1DA0 SIEMENS SIGNAL CABLE, PREASSEMBLED (ABSOLUTE MEASURING ENCODER IN MOTOR) 3X2X0.14+4X0.14+2X0.5+4X0.23 C TRAILING TYPE, PERFORMANCE TYPE DMAX = 10.7 MM, LENGTH (M) = + 0 + 30 + 0 + 0

6FX2002-2EQ10-1DA0 SIEMENS SIGNAL CABLE, PREASSEMBLED (ABSOLUTE MEASURING ENCODER IN MOTOR) 3X2X0.14+4X0.14+2X0.5+4X0.23 C TRAILING TYPE, PERFORMANCE TYPE DMAX = 10.7 MM, LENGTH (M) = 0 + 30 + 0 + 0

6FX8002-2EQ00-1DA0 SIEMENS SIGNAL CABLE PRE-ASSEMBLED; 30 MTR.

6FC9348-2BY00-1BF0 SIEMENS SIGNAL CABLE, PREASSEMBLED TACHOGEN. ON 6SC6101 12X0,22 C MOTION CONNECT 800PLUS TRAILING TYPE UL/CSA DESINA DMAX = 7.3 MM, LENGTH (M)= 0 + 10 + 5 + 0

6FX8002-2EQ10-1FA0 SIEMENS SIGNAL CABLE PRE-ASSEMBLED FOR ABSOLUTE ENCODER ENDAT INTEGRATED INTO THE MOTOR 3X (2X0.14) C+4X 0.14+2X0.5 +4X 0.22 C CONNECTOR FULL THREAD M23 MOTION-CONNECT 800PLUS TRAILABLE UL/CSA DESINA DMAX=9.8 MM LENGTH (M)= TYPE: 6FX8002-2EQ10 LENGTH (M) = 0 + 50 + 0 + 0

6FX8002-2CA31-1DC0 SIEMENS SIGNAL CABLE PRE-ASSEMBLED FOR INCR. ENCODER WITH C/D TRACKS INTEGRATED INTO THE MOTOR 3X (2X0.14) C+4X 0.14+2X0.5 +4X 0.22 C CONNECTOR FULL THREAD M23 MOTION-CONNECT 800PLUS TRAILABLE UL/CSA DESINA DMAX=9.8 MM LENGTH (M)= TYPE: 6FX8002-2CA31 LENGTH (M) = + 0 + 30 + 2 + 0

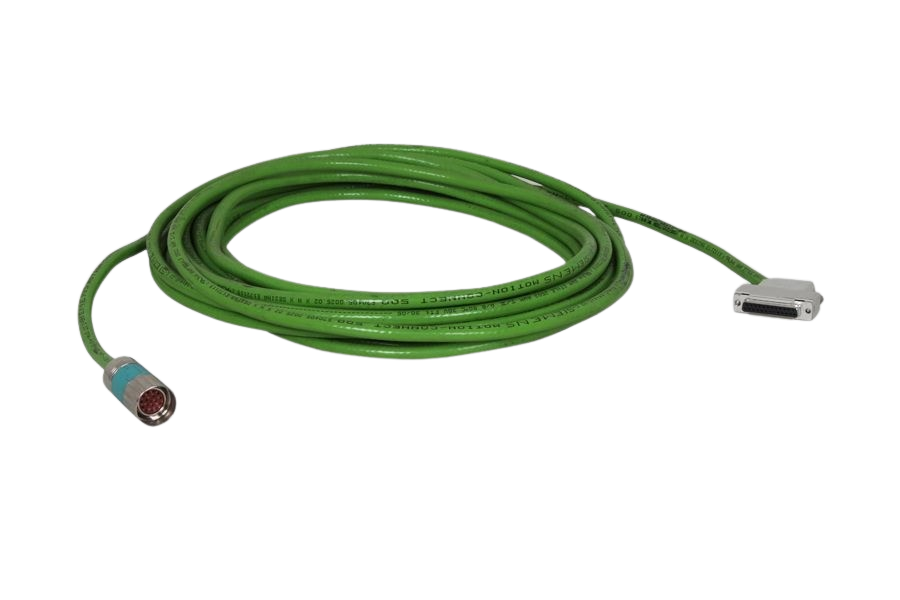

6FX5002-2EQ10-1BA0 SIEMENS SIGNAL CABLE PRE-ASSEMBLED (ABSOLUTE ENCODER IN MOTOR) 3X 2X 0.14+4X 0.14+2X0.5+4X 0.23 C UL/CSA, DESINA MOTION-CONNECT 500 DMAX=9.9 MM TYPE: 6FX5002-2EQ10 LENGTH (M) = 0 + 10 + 0 + 0

6FX5002-2EN20-1AF0 SIEMENS SIGNAL CABLE PRE-ASSEMBLED ABSOLUTE ENCODER ENDAT IN THE MOTOR, SPEED-CONNECT M17 3X 2X 0.14+4X 0.14+2X0.5+ 4X 0.22 C MOTION-CONNECT 500 TRAILABLE, UL/CSA, DESINA DMAX=9.8 MM TYPE: 6FX5002-2EN20 LENGTH (M) = 0 + 0 + 5 + 0
